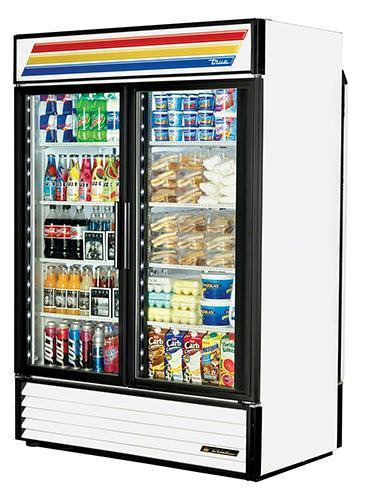

TRUE TRGDM49RL-LD COMMERCIAL REFRIGERATOR FOR 220-240 VOLT/ 50 HZ

Features

* 220-240 Volt/ 50 Hz, Commercial Swing Door Rear Load Refrigerator with LED Lighting

 * Refrigeration system holds 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation

 * Non-peel White Laminated Vinyl Exterior

 * White Aluminum Interior Liner with Stainless Steel Floor

 * Positive Seal, Torsion Type Closure System

 * “Low-E” Double Pane Thermal Insulated Glass Door Assemblies with Mitered Plastic Channel Frames

 * Safety Shielded LED Interior Lighting

 * Cabinet Structure Is Foamed In-Place Using Ecomate

 * High Density, Polyurethane Insulation that has Zero ODP & Zero GWP

 * 134A Refrigerant

 * CE, UL, NSE Approved

Model

Doors

Shelves

Cabinet Dimensions (inches) (mm)

HP

Voltage

Amps

NEMA Config.

Cord Length (total ft.) (total m)

Crated Weight (lbs.) (kg)

L

D†

H

TRGDM49RL-LD

2fr/2bk

8

541/8 1375

323/8 823

785/8 1998

/2

220-240/50/1

5.4

?

9 2.74

575 261

STANDARD FEATURES

DESIGN

True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, and lower utility costs in an attractive merchandiser that brilliantly displays packaged food and beverages.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary tube system using environmentally friendly (CFC free) 134A refrigerant.

Extra large evaporator coil balanced with higher horsepower compressor and large condenser; maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C).

Sealed, cast iron, self-lubricating evaporator fan motor(s) and larger fan blades give True merchandisers a more eficient low velocity, high volume airflow design. This unique design ensures faster temperature pull down of warm

product, colder holding temperatures and faster recovery in high use situations.

Bottom mounted condensing unit positioned for easy maintenance. “No stoop” lower shelf maximizes visibility by raising merchandised product to higher level.

CABINET CONSTRUCTION

Exterior - non-peel or chip white laminated vinyl; durable and permanent.

Interior - attractive, NSF approved, white aluminum liner with stainless steel floor. Insulation - entire cabinet structure is foamed-in-place using Ecomate. A high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).

Welded, heavy duty steel frame rail, black powder coated for corrosion protection.

Frame rail fitted with leg levelers.

Illuminated exterior sign panel. Variety of sign options available.

DOORS

Front doors - “Low-E”, double pane thermal insulated glass door assemblies with extruded aluminum frames. The latest in energy eficient technology.

Each front door fitted with 12” (305 mm) long extruded handle.

Self closing doors. Positive seal, torsion type closure system.

Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.

SHELVING

Eight (8) adjustable, heavy duty PVC coated wire shelves 249/16”L x 221/8”D (624 mm x 562 mm). Four (4) chrome plated shelf clips included per shelf.

Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on /2” (13 mm) increments.

LIGHTING

LED interior lighting provides more even lighting throughout the cabinet. Safety shielded.

MODEL FEATURES

Evaporator is epoxy coated to eliminate the potential of corrosion.

Convenient clean-out drain built in cabinet floor. Listed under NSF-7 for the storage and/or display of packaged or bottled product.

OPTIONAL FEATURES/ACCESSORIES

 Upcharge and lead times may apply.

? Black exterior.

? Stainless steel exterior.

? Black aluminum interior liner with black shelving.

? Stainless steel interior liner. ? 6” (153 mm) standard legs.

? 6” (153 mm) seismic/flanged legs. ? 2/2” (64 mm) diameter castors.

? 4” (102 mm) diameter castors. ? Red wine thermostat.

? White wine thermostat. ? Chocolate thermostat. ? Padlock.

? Wine racks.

? Additional shelves.

? TrueFlex gravity feed organizers. ? Pricing strips.

? Remote cabinets (condensing unit supplied by others; system comes standard with 404A

expansion valve and requires R404A refrigerant). Consult factory technical service department for BTU information. All remote units must be hard wired during installation.

Product Specification:

Unit Dimension:78.6”H x 54.1”W x32.4”D (1998x1375x823 mm)

Shipping Weight:575 Lb./ 261 Kg

Capacity:49 Cu. ft.

Note:

This appliance is not designed for use in America. Only for countries that use 220 / 240 V electrical outlets.
