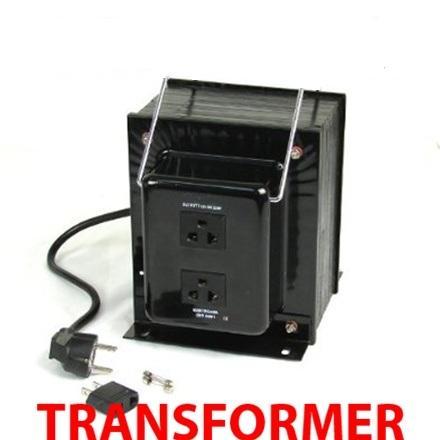

TC-4000B 4000 WATTS STEP UP STEP DOWN VOLTAGE TRANSFORMER

The TC-4000B is a transformer built for both home as well as commercial use. Sam Stores provides a good circuit so as to regulate the voltage to various appliances. It has an on off switch with an indicator lamp. There are 2 outlets in front of the unit which accepts 3 pronged US plugs or 2 pronged Euro plugs. It is hard wired with a European shucko plug which also holds good for Asian outlets. A handle is attached to it so that it is easy to carry. It comes with a 1 year warranty which covers parts and labour.It also has a 90 day exchange policy.

Features:

• Model: TC-4000B
• 4000 Watt Maximum Capacity
• Heavy-Duty continuous use transformer
• Converts 220/240 Volts down to 110/120 Volts OR Converts 110/120 Volts up to 220/240 Volts
• Two grounded outlets in front of unit (accepts 3 or 2 prong US and Euro plugs)
• You must buy plug #8 shown on the left to ground the transformer in the USA, Canada and Mexico
• Hard wired with a European Shucko plug also good for Asian outlets
• Fuse protected
• Durable design with a heavy-Duty Cord
• Dimensions and Weight:
  • • • • • 10"D x 6.5"W x 6"H (HXWXD)
          • 45 lbs
          • Specifications subject to change.
• Warranty:
  • • • • • 90 Days Exchange
          • 1 Year Parts and Labor
            • • • • • • The manufacture recommends you purchase a transformer that is 50 to 100% higher then the wattage you need.



            You should know that you will never damage your appliance with a higher wattage transformer, however if you buy one that is not powerful enough, it will not work.



            Use Amps to calculate watts



            Volts (times) Amps = Watts,
            For Example 110V x 5A = 550W



            Remember to leave at least a 100% slack for the transformer. Using them to maximum capacity will eventually burn the transformer out after prolonged use. Some items, such as, laser printers and power tools spike when you turn them on. For these types of situations you need to buy a transformer that is at least 3 times the items capacity.







            Please note transformers are to be used with caution in any case. Keep away from moisture areas and children. We assume no responsibility for misused transformers. We can recommend a certain size and model if you have any questions or doubts on the size you require.
