SPEEDQUEEN LTSA5

http://www.samstores.com/Commercial%20small%20capacity.pdf

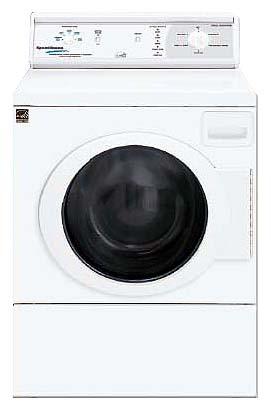

SpeedQueen LTSA5
220~240 Volt 50 Hz Commercial Home-style Washer with BUILT IN HEATER, 2.84 cu. ft. Extra Large Stainless Steel Tub. Large or Extra Large Capacity. Fewer wash loads save time and energy. Advanced Suspension System. Commercial Quality Transmission. Water Level Selector. Poly Tuff Curved Vane Agitator. The high vanes and extra long 210 degrees agitation stroke deliver side-to-side, top-to-bottom washing action, to get your clothes their cleanest. Fabric Softener Dispenser. Automatically adds softener at the beginning of the rinse cycle, long lasting stainless steel wash tub, Dependable ever smooth transmission,heavy-duty,1/2 hp ,two speed motor, single belt drive simplicity, corrosion-resisatnant polypropylene pump, pump clips for service convenience, automatic Balance System for smooth & quiet operation, even on wood floors, which provides best out-of-balance handling, completing wash cycles without interruption, user friendly free-wheeling timer knob for start and cycle selections with energy saver designation. (Matching Dryer LES17).

Product Specification:

Unit Dimension:     43 H x 26 7/8"W x 28"D

Shipping Weight:    235 Lbs.

Product Type:        Commercial Home-style Washer

Product Spec.:       ADDITIONAL FEATURES:- ENERGY STAR Qualified, U S Department of Energy compliant to 2007 commercial washer standards for energy and water savings, Reversing wash action, Heavy-Duty freestanding washer.

Technical Specification    LTSA5

Volt                                                    240V

Hertz                                                 50

Motor Speed                                    Variable Speed Induction ,3/4 HP

Cycles Time                                    27 Minutes

Cycles                                              6

Normal                                             Yes

Permanent Press                          Yes

Delicate                                            Yes

Hot                                                    Yes

Warm                                                Yes

Cold                                                  Yes

Features

Activation                                          Push to Start

Water Consumption                      14.77

Water Factor- gal. per cu. ft.         5.2

Fabric Softener Dispenser           Yes

Modified Energy Factor                 204

Hot Water Usage per Gallon       1.59

Bleach dispenser                          Yes

Water Pressure Ps(Bar)               20 to 120 (1.4/8.3)

Spin Speed                                     500,650,1000

Basket volume DOE cu. ft.        2.84 (80 liters)

Stainless Steel Tub                       Yes

Color                                                 White

Dimensions:

Width                                                26 7/8 (683 mm)

Depth                                                28 (711 mm)

Height                                               43 (1092 mm)

Cabinet Top Height                       36 (910 mm)

Approx. Shipping Weight              235 lbs. (105 Kg)

Motor                                                 3/4 Hp reversing motor, permanently lubricated with a built-in automatic thermal overload protector.

This appliance is not designed for use in America. Only for countries that use 220 / 240 V electrical outlets
