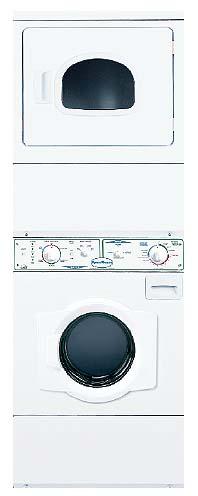

SPEEDQUEEN LTS97/LTS99 STACK WASHERS AND DRYERS

http://www.samstores.com/Commercial%20small%20capacity.pdf

Technical Specification of Stack Washer

Model                                                  LTS97/LTS99

Speeds                                                 Variable

Cycles                                                  5 - Regular, Perm Press, Delicate, Rinse and Spin, Spin Only.

Water Temp.                                        4 - Hot/Cold, Warm/Warm, Warm/Cold, Cold/Cold

Stainless Steel Wash Tub                      2.84 cu. ft.

Water Pressure                                     Fill 20 120 psi (1.4/8.3 Bar)

Wash/Tumble - rpm                              41, 50

Distribution/Pump - rpm                        80

Spin Speeds - rpm                                500, 650, 1000

Activation                                             Push-to-Start

Dispenser                                             Detergent, Liquid Bleach, Liquid Softener

Motor HP (Thermal Protected)             Variable Speed Induction, 3/4 HP

Color                                                   White

Electrical Specs                                    120/60/1 " 15 amp

220/60/1 " 10 amp

230/50/1 " 10 amp

Width - in (mm)                                    26 7/8 (683)

Depth - in (mm)                                    28 (711)

Height - in (mm)                                   74 1/2 (1890)

Net Weight - lb (kg)                             Electric: 370 (168)

Gas: 375 (170)

Shipping Weight - lb (kg)                      Electric: 385 (174)

Gas: 390 (177)

Agency Approvals                                Electric: UL

Gas: UL, CSA Star

Technical Specification of Stack Dryer

Model                                                  LTS97/LTS99

Cylinder Volume                                   7.0 cu. ft

Cycles                                                  6 - Auto, Regular/Delicate(More Dry, Less Dry), Permanent PRess/Knits(More Dry, Less Dry), Time(More Dry, Less Dry)

Cylinder Interior                                   Galva nized Steel

Door Opening                                      180
