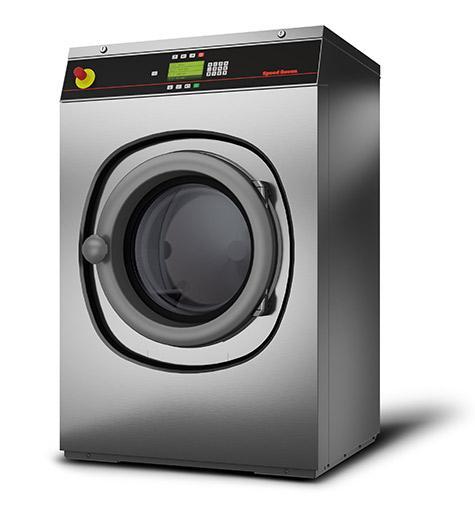

SPEED QUEEN SYN025 25 LB SOFTMOUNT WASHER-EXTRACTOR 200-240 VOLTS 50/60HZ 1/3PH

Built for Reliable Performance

The powerful operation of a washer-extractor often required that the

machine be bolted to the floor. Softmount washer-extractors offer an

alternative for specialized applications, such as second floors, where

hardmount units aren’t an option. The heavy duty suspension absorbs

vibrations without the need for special foundations. The inverter drive

system delivers low energy use, high extraction speed, lower noise and

fewer imbalances. Softmount washer-extractors offer an attractive, sleek,

modern design with a slanted control panel for ease of operation.

• High G-Force extraction reduces drying times

• Inverter drive handles a wide variety of fabric types

• Stainless steel construction increases strength and durability

• Upfront soap box for ease of use

• Large door opening for easy loading

QED Select Control

QED Select control comes with 99 preset programs. Multilingual,

versatile and easy to use, the customizable wash programs help

managers tailor their wash process for specific loads and linen

types. Users can easily follow the status of every phase of the wash

cycle and modify data and parameters at any time to monitor for

maximum efficiency. The result? Your laundry received the best

possible care because operators have the utmost cycle control.

Specifications

Control Option QED Select

Capacity - lb (kg) 25 (11)

Overall Width - in (mm) 31.29 (795)

Overall Depth - in (mm) 31.29 (795)

Overall Height - in (mm) 48.22 (1225)

Cylinder Diameter - in (mm) 24.40 (620)

Cylinder Depth - in (mm) 13.78 (350)

Cylinder Volume - cu. ft (liters) 3.7 (105)

Door Opening Size - in (mm) 16.14 (410)

Door Bottom to Floor - in (mm) 13.36 (342)

Wash Speed - RPM 49

Extractor Speed - RPM 1075

Extract G-Force 400

Water Inlet Connection - in (mm) 2 x 0.75 (19)

Steam Inlet Connection - in (mm) 0.5 (13)

Drain Diameter - in (mm) 3 (76)

Motor Power Consumption - HP (kW) 1.48 (1.10)

Voltage Wires/Circuit Breaker - FLA* 200-240/50/60/1/3** 15-9.8 (1 Ph) 15-9.8 (3 Ph)

Shipping Dimensions Approx.- in (mm) Width 32.87 (835) Depth 33.01 (840) Height 52.95 (1345)

Net Weight - lb (kg) 463 (210)

Shipping Weight - lb (kg) 518 (235)

Agency Approvals CSA
