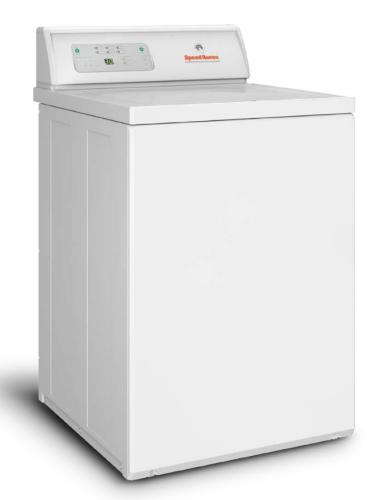

SPEED QUEEN SWNMN2SP115TW01 E-MECH, PUSH-TO-START 120V/60HZ/1PH (FOR USA)

Extra large capacity stainless steel tub ensures long-lasting, dependable performance.
Advanced suspension system eliminates the possibility of an unbalanced load
Curved four-vane agitator delivers an industry-best 210° wash stroke that produces unparalleled cleaning results.
Top Load Washers
Our top load washers are constructed from heavy-duty components to
ensure an extended life in your laundry operation, including a stainless
steel washtub, all-metal transmission and a commercial-grade cabinet
finish. Compliant with the current U.S. Department of Energy water
and energy standards for commercial washers, your laundry will realize
significant savings in water and energy costs.
• Extra large capacity stainless steel tub ensures long-lasting,
dependable performance.
• Advanced suspension system eliminates the possibility of an
unbalanced load.
• Curved four-vane agitator delivers an industry-best 210° wash
stroke that produces unparalleled cleaning results.
Electronic Homestyle Control
The Electronic Homestyle control is durable and easy to operate with
intuitive selection buttons. It features a time-remaining display, six
preset cycle buttons, cycle adjustability, along with additional cycle
enhancer options for a pre-wash or second rinse cycle.
Mechanical Homestyle Control
Speed Queen® washers with Mechanical Homestyle controls are
designed for durability and are easy to operate with a multi-cycle
timer knob and extra rinse switch.
E-Mech Control
The E-Mech control features a straightforward design that offers
users simple water temperature and fabric selections, and uses cue
lights to monitor progress through the wash cycle.
Specifications
Model/
Control Option
Electronic
Homestyle (EH) LWNE22SP115TW01
Mechanical
Homestyle (MH) LWN432SP115TW01
E-Mech (EM) SWNMN2SP115TW01
Control Location Rear
Capacity - lb (kg)
EH/MH 16 (7.3)
EM 14 (6.4)
Cylinder Volume - cu. ft.
(liters)
EH/MH 3.22 (91.2)
EM 3.26 (92.3)
Overall Width - in (mm) 25.63 (651)
Overall Depth - in (mm) 28 (711)
Overall Height - in (mm)
EH/MH 43 (1092)
EM 41.25 (1048)
Motor Power Consumption - hp (kw) 0.5 (0.37)
Water Consumption
Per Cycle - g (l)
EH 27.9 (106)
MH 27.9 (106)
EM 28.07 (106)
IWF (Water Factor)
EH 8.8
MH 8.8
EM 8.8
MEFJ2 (Modified Energy Factor)
EH/MH 1.35
EM 1.35
Available Water Temperatures 3
*Available Cycles Heavy Duty, Normal
Eco, Perm Press,
Delicate, Rinse & Spin,
Spin Only
Water Pressure -PSI (Bar) 20-120 (1.4/8.3)
*Cycle Indicator Lights Yes
Cylinder Finish Stainless Steel
Available Colors White
Available Electrical Requirements -
Voltage/Hz/Ph - Circuit Amperage
120/60/1 -15
Shipping Dimensions
Approx. - in (mm)
Width 28 (711)
Depth 30 (762)
Height 45 (1143)
Net Weight - lb (kg)
EH/MH 186 (84)
EM 206 (93)
Shipping Weight - lb (kg)
EH/MH 196 (89)
EM 218 (99)
Agency Approvals cULus
A. Overall Width - in (mm) 25.63 (651)
B. Overall Depth - in (mm) 28 (711)
C. Overall Height - in (mm)
EH/MH 43 (1092)
EM 41.25 (1048)
