Fast drying performance, Concentrated airflow pattern and sealed cylinder rims ensure maximum air utilization and energy savings.
Product Code: SQ-STT30N Product ID: 24654
Product sold by: samstores.com
Availability: In Stock New

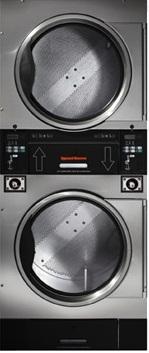

VENDED LAUNDRY TUMBLERS STT30N
TUMBLER STT30 FEATURES:
• Fast drying performance
•Concentrated airflow pattern and sealed cylinder rims ensure maximum air utilization and energy savings.
• Large, easy to clean lint compartment
• Fewer moving parts mean fewer maintenance problems and less wear
•High performance heater box increases energy efficiency, reduces drying times and provides more comfortable operating environment.
TUMBLER CONTROL OPTIONS
Micro-Display Control For owners desiring Better control over their operations, the Micro Display Control enables them to easily set and change vend pricing. The digital display shows vend price and time remaining in the cycle. Owners also gain basic audit features as well as the capability to integrate after market activations for their stores.
SPECIFICATIONS
Dimensions |
|
Capacity - kg (lb) | 13.6 (2x30) |
Width - mm (in) | 800 (31 1/2”) |
Depth - mm (in) | 1089 (42 7/8”) |
Height - mm (in) | 1937 (76 1/4”) |
Cylinder Size - mm (in) (diameter x depth) | 762 (30”) |
Cylinder Volume - liters (cu. ft.) | 301 (10.63) |
Motor |
|
Motor Fan - HP(W) | N/A |
Motor Cylinder - HP(W) | 187 (1/4) |
Energy Data |
|
Gas Models | 42.8 kW (146,000 Btu/hr) total 21.4 kW (73,000 Btu/hr) per pocket |
Steam Models | At 6.9 bar (100 psi): 3.2 BHP, 35.5 kW (111,000 Btu/hr) |
Electric Models | 21 kW |
Electrical Specifications
Gas and Steam
| Amps
| |
Voltages
| Non-Rev
|
Rev
|
120/208-240/60/1; 2W/3W+G
|
|
|
100/200/60/1; 2W+G
|
|
|
100/200/50/1; 2W+G
|
|
|
230-240/50/1; 2W+G
|
|
|
200-208/240/60/3; 3W+G
|
|
|
200/50/3; 3W+G
|
|
|
230-240/50/3; 3W+G
|
|
|
380/400-415/50/3; 3W+G
|
|
|
460-480/60/3; 3W+G
|
|
|
Electric
| Amps
| |
Voltages (30kW)
| Non-Rev
|
Rev
|
200-208/60/3; 3W+G
|
|
|
200/50/3; 3W+G
|
|
|
230-240/50/3; 3W+G
|
|
|
240/60/3; 3W+G
|
|
|
380/50/3; 3W+G
|
|
|
400-415/50/3; 3W+G
|
|
|
460-480/60/3; 3W+G
|
|
|
Connections |
|
Air Outlet - mm (in) | 203 (8”) |
Plumbing - Gas model - mm (in) | 13 (1/2” NPT) |
Plumbing - Steam model - mm (in) | 19 (3/4” NPT) |
Airflow |
|
Airflow - liters/sec (cfm) | 60 Hz: 165 (400) 50 Hz: 151 (340) |
Shipping |
|
Net Weight - kg (lb) | 247 (544) |
Shipping Weight - kg (lb) | 265 (582) |
Shipping Height - mm (in) | 2057 (81”) |
Shipping Width - mm (in) | 825 (32 1/2”) |
Shipping Depth - mm (in) | 1194 (47”) |
Agency Approvals |
|
Gas Models | CSA Star, CE |
Elec. and Steam Models | cULus, CE |
Note:
This is a standard model, if you want additional features for this model; you can call us or send us an email for a quote.
Online charges for shipping are the approximate charges not the final shipping charge
