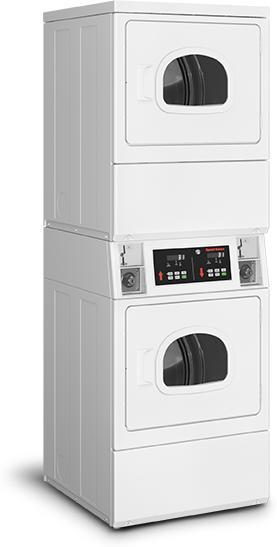

SPEED QUEEN SSENYFGS176TW01 STACKED ELECTRIC DRYER 120/240/60/1 VOLTAGE, GALVANIZED CYLINDER, SOLID DOOR, WHITE

MODEL - see below for all models and activation available CONTROL OPTION Quantum Gold COLOR White CAPACITY - lb (kg) 18 (8.2) ea OVERALL WIDTH - in (mm) 26.875 (683) OVERALL DEPTH - in (mm) 28 (711) OVERALL HEIGHT - in (mm) 76.5 (1943) CYLINDER VOLUME - cu. ft. (liters) 7.0 (198) ea MOTOR (CAPACITOR START AND THERMAL PROTECTED) 0.33 HP TYPE OF GAS (GAS MODELS ONLY) Factory equipped natural/mixed gas AIR OUTLET DIAMETER - in (mm) 4 (102) EXHAUST AIRFLOW - cfm (liters/sec) 220 (105) AVAILABLE CYCLES High, Medium, Low, Delicates, No Heat ELECTRICAL REQUIREMENTS s e Electric 120/240/60/1-30 amp 120/208/60/1-30 amp Gas 120/60/1-15 amp HEATING ELEMENT Electric 5350W, 240V 4750W, 208V Gas 25,000 Btu SHIPPING DIMENSIONS APPROX. - in (mm) Width 33 (838) Depth 30 (762) Height 80 (2032) NET WEIGHT - lb (kg) Electric 270 (122.5) Gas 270 (122.5) SHIPPING WEIGHT lb (kg) Electric 280 (127) Gas 280 (127) AGENCY APPROVALS Electric cULus Gas cCSAus

MODELS VOLTAGE/FREQ/PH ACTIVATION SSENCFGW173TW01 120/240/60/1 Electric Coin Drop Installed SSENCFGW153TW01 120/208/60/1 SSGNCFGW113TW01 120/60/1 Gas SSENYFGW173TW01 120/240/60/1 Electric Prep for Card SSGNYFGW113TW01 120/240/60/1 Gas

A. OVERALL WIDTH - in (mm) 26.875 (683) B. OVERALL DEPTH - in (mm) 28 (711) C. OVERALL HEIGHT - in (mm) 76.5 (1943) D. FLOOR TO DOOR OPENING -in (mm) 15.44 (392) E. DOOR SWING - in (mm) 23.5 (597)
