Laundry owners and managers constantly are confronted with issues such as energy conser vation, low operating costs and equipment breakdowns
Product Code: SQ-SDG809/SDE807 Product ID: 24540
Product sold by: samstores.com
Availability: In Stock New
Standard Control
Laundry owners and managers constantly are confronted with issues such as energy conser vation, low operating costs and equipment breakdowns.That’s why when it comes to commerical washers and dr yers, water and energy efficient designs and quality internal components are impor tant factors to consider when equipping a laundr y room.
Our manual control line features toploaders that offer six cycle selections and push-to-star t activation. Our single load and stack dryers have four heat/cycle options and push-to-star t activation. These units are ideal for militar y, colleges, restaurants, beauty salons and other special business applications.
Your authorized Speed Queen distributor can design a laundr y solution to meet the needs of your proper ty.
High Efficiency Automatic Washer
• Efficiently designed for energy and water savings for an average water consumption of only 99 litres.
• Waterfall fill enhances wash and rinse cycles for maximum removal of soil and soap residue.
Preset cold water rinses minimize hot water consumption to an average of only 17 litres
per cycle.
Superior Wash/Rinse Action
• Curved four-vane polypropylene agitator with 210° wash stroke, the longest in the industry, produces superb washing and rinsing results.
High-Speed Spin Extract
• A high extract speed of 710 RPM spins clothes out drier. In fact, the high spin speed lowers moisture retention by 3.4% over previous models.This means faster drying, increased cycle turns and satisfied users.
Automatic Balance System
• Residents will appreciate the Automatic Balance System (ABS) for smooth and quiet operation, even on wood floors.The ABS provides the industry’s best out-of-balance handling, completing wash cycles without interruption.
Quality Washer Components
• Unit is 100% front serviceable.
• Durable stainless steel washtub.
• Heavy-duty, 1/2 HP, one-speed motor.
• Start capacitor lowers amperage draw.
• Single-belt drive simplicity.
• Corrosion-resistant polypropylene pump.
• Dependable, Eversmooth transmission.
• Rear self-leveling legs.

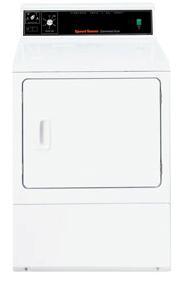

Superior Drying Convenience
• A wide door opening of 1,914 sq. cm. is the industry’s largest, offering residents the convenience of easy loading and unloading.
• Door is reversible for installation flexibility. The upfront lint filter is easy to clean and secured.
Drying and Energy Dynamics
• Durable galvanized steel cylinder with extra-large
9 kg capacity.The gentle tumble action minimizes wrinkles.
• Quiet, efficient blower system with superior airflow of 105 litres per second for fast drying and lower operating costs.
• Efficient electric dryer heating with 4,000 Watts.

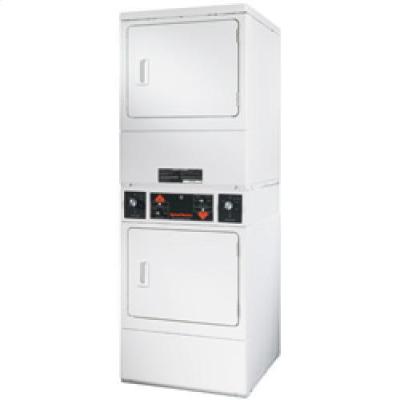

Stack Dryer Features
• A space saver! Two dryers in the space of one, both operating independently.
• Graphic arrows on control that indicate upper and lower pockets.
• 100% serviceable from the front.
Specifications:
| Electric: SDE807, SDG809 |
Basket/CylinderVolume- litres(cu. ft.) | 198 (7.0) |
Width - mm (in) | 683 (26 7/8") |
Depth - mm (in) | 711 (28") |
Height* - mm (in) | 1092 (43") |
Work Surface Height - mm (in) | 914 (36") |
Weight - kg (lb) | Electric: 61 (135) |
| Gas: 64 (140) |
Shipping Weight - kg (lb) | Electric: 66 (145) |
| Gas: 68 (150) |
Cycle Time - minutes | 45 |
Motor HP (Capacitor Star t | 1/3 HP, 5.5 amps |
and Thermal Protected) |
|
Water Consumption - ltrs. per cycle | N/A |
Hot Water - litres per cycle | N/A |
Water Pressure - bar (psi) | N/A |
|
|
Spin Speed - RPM | N/A |
Cycle/Temperature | Normal |
| Permanent Press |
| Delicate |
| No Heat |
Electrical Specifications | Electric: 240/50/1-20 amp |
| Gas: 240/50/1-10 amp |
Mj Per Hour | 26.38 |
Heating Element | 4000 W, 240 V |
Type of Gas (Gas models only) | Factory-equipped natural/ |
| mixed gas. Convertible |
| to LP gas.** |
Utility Connections - mm (in) | Gas: 9.5 NPT (3/8") |
Air Outlet Diameter - mm (in) | 102 (4") |
Exhaust Airflow*** - litres/sec. (cfm) | 220 (105) |
Maximum Exhaust | 0.6" W.C. |
Static Back Pressure |
|
Agency Approval | Electric: Queensland Government |
| Gas: Australian Gas Assoc. |
Activation | Push-to-Star t |
Self-Adjusting Rear Legs | No |
Top and Lid Finish | Porcelain |
Colors | White |
Door Type | Solid |
Note:
This is a standard model, if you want additional features for this model, you can call us or send us an email for a quote.
This appliance is not designed for use in America. Only for countries that use 220 / 240 V electrical outlets
Online charges for shipping are the approximate charges not the final shipping charge
