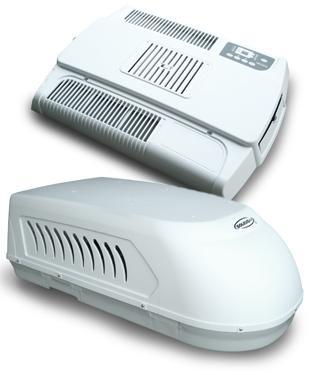

SOLEUS HCB-R135-A 13,500 BTU RV ROOFTOP AND CEILING ASSEMBLY STRAIGHT COOL AIR CONDITIONER, TIMER, 3-SPEED 110 VOLTS

Soleus HCB-R135-A 13,500 btu RV Rooftop and Ceiling Assembly Straight Cool Air Conditioner, Timer, 3-Speed and Auto setting, Remote, Auto Restart

Features:

    13,500 BTU rooftop / ceiling Air conditioner for Recreational Vehicle

    Cooling Capacity: 13,500 BTUs

    Unit Model number

        Indoor unit (Rooftop): HCB-R135-A-ID

        Outdoor unit (Ceiling Assembly): HCB-R135-A-OD

    Operation Mode:

        Air conditioner

        Dehumidifier

        Fan only

    Fan Speed: 3 Speeds Fan and Auto mode

    Thermostat Digital Thermostat

    Timer: 24 Hours ON/OFF Timer

    Sleep Mode - Increase 1F for each of the first 2 hours,

    Filter: Washable / Reusable Filter, with filter check indicator

    Remote Control: Yes, Full function

    Auto Defrost - When frost builds up on the evaporator coils

    Dehumidify: 132 pts per day dehumidification

    Dehumidification function mixes cool dry air, with the warm humid air to keep you comfortable

    Air Flow (H/M/L): 490/400/346 CFM

    Noise level : 58 db (Rooftop); 50 db (Ceiling Assembly)

    Eco-friendly R410A refrigerant

    Operating Temperature: 64.4F - 109.4F

    Voltage: 115V / ~60Hz

    Power: 1,290 watts

    Rated Current: 11.6 Amp

    Dimension:

        Indoor unit Dimensions: 26.25"W x 19.5"D x 3.625"H

        Outdoor unit Dimensions: 41"W x 22.375"D x 14.5"H

check the manual

http://www.soleushomecomfort.com/uploads/images/Manuals/HCB-R135-A-ID%20OD%20Manual%2008-04-2014.pdf
