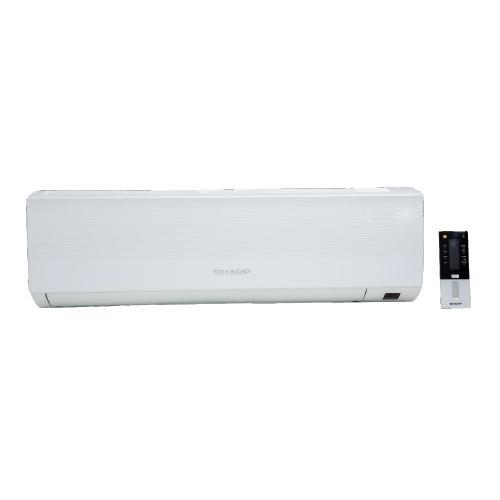

SHARP AY-A30ECI 30,000 BTU AIR CONDITIONE 220-240 VOLT NOT FOR USA

ECO MODE

One button control to start up the mode.The air-con cools the room much faster and then operates at low frequency but keeps the desired temperature.

BACKLIGHT DISPLAY

Press any button on the remote control for 3 seconds to turn on the backlight, so that the users easily control the air-con at night.

ANTI-COLD AIR

In Heating Mode,the indoor fan speed is controlled according to the evaporatort emperature. Only when the temperature is warm enough, the fan begins to operate, preventing any cold blasting at the beginning of unit running or after defrosting period.

SLEEP MODE

To ensure the users have a sweet sleep without suffering an under-cooling or over-heating experience at night.

CoolingMode : The air-con automatically increases1perhour for 5 hours. Then decreases 1per hour.

HeatingMode : The air-con automatically decreases 1perhour to avoid over-high temperature.

AUTO RESTART

After being turned off or in case of an accidental power cut, the air conditioners are able to retain and restore the temperature and other settings, until being turned on or the power supply is resumed.

RUST PROOF

The considerately-devised 6-tiened anti-rusting technology enables the outdoor unit to sufferrusting, and appear clean for long period.

INTELLIGENT DEFROST

It is available for the automatic defrosting. After the defrosting is completed, it will automatically reverse to the heating operation; accordingly, it can not only fully ensure the heating effect of the air conditioner but also show a more durable effect.

TIMER

Program the automatically on/off time, it helps to save energy and provides more comfortable life for the users.

INDIVIDUAL DEHUMIDIFICATION

Freeing the users from the damp weather. It is easy to keep the clothes dry even in the rain season.

CHORD RESPONSE

With the chord music as the response sound, which gives users a pleasant feeling.

MILDEW PROOF

The fan runs 15 more minutes after the air conditioner is turned off, in order to dry the remaining water in evaporator to keep the unit from mildew.

SELF-DIAGNOSIS

The air conditioner can correctly display the error codes for easy repair and the improvement of repair efficiency and saving cost.

TECHNICAL SPECIFICATIONS

Model No.          Indoor unit         AY-A30ECI

Outdoor unit      AE-A30ECI

Type      Heating Pump

Rated cooling capacity   Btu/h    29,000

W            8500

Rated heating capacity  Btu/h    32,000

W            9400

EER for cooling  w/w       3

COP for heating                w/w       3

Moisture removal            Liters/h                2.5

Pressure              High(DP)              MPa       4.5

Low(SP)               MPa       1.9

Indoor noise level at cooling       High       dB{A)    52

Med.     dB{A)    49

Low        dB{A}    43

Outdoor noise level        dB{A)    59

ELECTRICAL DATA

Power supply    220~240V~/50Hz

Voltage Range   V             19S~264

Rated current    Cooling A             13.5

Heating                A             15

Rated input        Cooling W            2830

Heating                W            3130

Annual energy consumption                      kwh (cooling)     1415

Max Current      Cooling A             17.6

Heating                A             19.5

Max Power input             Cooling W            4000

Heating                W            4300

REFRIGERATING SYSTEM

Refrigerart/Charge          Gram     R410A

OTHERS

Suitable area      m2          30™ 50

Net dimensions (WxHxD)             Indoor  mm        1186x340x260

Outdoor               mm        900*805*360

Packing dimensions        Indoor  mm        1265x415x338

Outdoor               mm        1031x925x447

Net weight         Indoor  kg           17

Outdoor               kg           69

Gross weight     Indoor  kg           21

Outdoor(with pipe)        kg           78

Loading Capacity              20'/40'/40'HC(with pipe)               101/88/40

220-240 volts 50 Hertz
