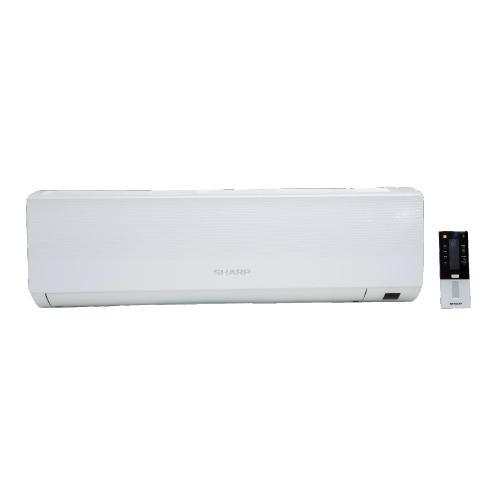

SHARP AY-A24ECI 24,000 BTU AIR CONDITIONER 220-240 VOLT NOT FOR USA

ECO MODE

One button control to start up the mode.The air-con cools the room much faster and then operates at low frequency but keeps the desired temperature.

BACKLIGHT DISPLAY

Press any button on the remote control for 3 seconds to turn on the backlight, so that the users easily control the air-con at night.

ANTI-COLD AIR

In Heating Mode,the indoor fan speed is controlled according to the evaporatort emperature. Only when the temperature is warm enough, the fan begins to operate, preventing any cold blasting at the beginning of unit running or after defrosting period.

SLEEP MODE

To ensure the users have a sweet sleep without suffering an under-cooling or over-heating experience at night.

CoolingMode : The air-con automatically increases1perhour for 5 hours. Then decreases 1per hour.

HeatingMode : The air-con automatically decreases 1perhour to avoid over-high temperature.

AUTO RESTART

After being turned off or in case of an accidental power cut, the air conditioners are able to retain and restore the temperature and other settings, until being turned on or the power supply is resumed.

RUST PROOF

The considerately-devised 6-tiened anti-rusting technology enables the outdoor unit to sufferrusting, and appear clean for long period.

INTELLIGENT DEFROST

It is available for the automatic defrosting. After the defrosting is completed, it will automatically reverse to the heating operation; accordingly, it can not only fully ensure the heating effect of the air conditioner but also show a more durable effect.

TIMER

Program the automatically on/off time, it helps to save energy and provides more comfortable life for the users.

INDIVIDUAL DEHUMIDIFICATION

Freeing the users from the damp weather. It is easy to keep the clothes dry even in the rain season.

CHORD RESPONSE

With the chord music as the response sound, which gives users a pleasant feeling.

MILDEW PROOF

The fan runs 15 more minutes after the air conditioner is turned off, in order to dry the remaining water in evaporator to keep the unit from mildew.

SELF-DIAGNOSIS

The air conditioner can correctly display the error codes for easy repair and the improvement of repair efficiency and saving cost.

TECHNICAL SPECIFICATIONS

Model No.          Indoor unit         AY-A24ECI

Outdoor unit      AE-A24ECI

Type      Heating Pump

Rated cooling capacity   Btu/h    24,000

W            6450

Rated heating capacity  Btu/h    22,500

W            6600

EER for cooling  w/w       3.1

COP for heating                w/w       3.15

Moisture removal            Liters/h                2.5

Pressure              High(DP)              MPa       4.5

Low(SP)               MPa       1.9

Indoor noise level at cooling       High       dB{A)    53

Med.     dB{A)    48

Low        dB{A}    44

Outdoor noise level        dB{A)    63

ELECTRICAL DATA

Power supply    220~240V~/50Hz

Voltage Range   V             19S~264

Rated current    Cooling A             10

Heating                A             10.3

Rated input        Cooling W            2080

Heating                W            2260

Annual energy consumption                      kwh (cooling)     1040

Max Current      Cooling A             13

Heating                A             13.5

Max Power input             Cooling W            2710

Heating                W            2940

REFRIGERATING SYSTEM

Refrigerart/Charge          Gram     R410A

OTHERS

Suitable area      m2          30™ 50

Net dimensions (WxHxD)             Indoor  mm        1033x313x202

Outdoor               mm        902x315x650

Packing dimensions        Indoor  mm        13

Outdoor               mm        50

Net weight         Indoor  kg           1103x400x300

Outdoor               kg           1027x705x433

Gross weight     Indoor  kg           16

Outdoor(with pipe)        kg           57

Loading Capacity              20'/40'/40'HC(with pipe)               55/124/146

220-240 volts 50 Hertz

220-240 volts 50 Hertz

ECO MODE

One button control to start up the mode.The air-con cools the room much faster and then operates at low frequency but keeps the desired temperature.

BACKLIGHT DISPLAY

Press any button on the remote control for 3 seconds to turn on the backlight, so that the users easily control the air-con at night.

ANTI-COLD AIR

In Heating Mode,the indoor fan speed is controlled according to the evaporatort emperature. Only when the temperature is warm enough, the fan begins to operate, preventing any cold blasting at the beginning of unit running or after defrosting period.

SLEEP MODE

To ensure the users have a sweet sleep without suffering an under-cooling or over-heating experience at night.

CoolingMode : The air-con automatically increases1perhour for 5 hours. Then decreases 1per hour.

HeatingMode : The air-con automatically decreases 1perhour to avoid over-high temperature.

AUTO RESTART

After being turned off or in case of an accidental power cut, the air conditioners are able to retain and restore the temperature and other settings, until being turned on or the power supply is resumed.

RUST PROOF

The considerately-devised 6-tiened anti-rusting technology enables the outdoor unit to sufferrusting, and appear clean for long period.

INTELLIGENT DEFROST

It is available for the automatic defrosting. After the defrosting is completed, it will automatically reverse to the heating operation; accordingly, it can not only fully ensure the heating effect of the air conditioner but also show a more durable effect.

TIMER

Program the automatically on/off time, it helps to save energy and provides more comfortable life for the users.

INDIVIDUAL DEHUMIDIFICATION

Freeing the users from the damp weather. It is easy to keep the clothes dry even in the rain season.

CHORD RESPONSE

With the chord music as the response sound, which gives users a pleasant feeling.

MILDEW PROOF

The fan runs 15 more minutes after the air conditioner is turned off, in order to dry the remaining water in evaporator to keep the unit from mildew.

SELF-DIAGNOSIS

The air conditioner can correctly display the error codes for easy repair and the improvement of repair efficiency and saving cost.

TECHNICAL SPECIFICATIONS

Model No.Indoor unitAY-A24ECI

Outdoor unitAE-A24ECI

TypeHeating Pump

Rated cooling capacityBtu/h22,000

W6450

Rated heating capacityBtu/h22,500

W6600

EER for coolingw/w3.1

COP for heatingw/w3.15

Moisture removalLiters/h2.5

PressureHigh(DP)MPa4.5

Low(SP)MPa1.9

Indoor noise level at coolingHighdB{A)53

Med.dB{A)48

LowdB{A}44

Outdoor noise leveldB{A)63

ELECTRICAL DATA

Power supply220~240V~/50Hz

Voltage RangeV19S~264

Rated currentCoolingA10

HeatingA10.3

Rated inputCoolingW2080

HeatingW2260

Annual energy consumption kwh (cooling)1040

Max CurrentCoolingA13

HeatingA13.5

Max Power inputCoolingW2710

HeatingW2940

REFRIGERATING SYSTEM

Refrigerart/ChargeGramR410A

OTHERS

Suitable aream230™ 50

Net dimensions (WxHxD)Indoormm1033x313x202

Outdoormm902x315x650

Packing dimensionsIndoormm13

Outdoormm50

Net weightIndoorkg1103x400x300

Outdoorkg1027x705x433

Gross weightIndoorkg16

Outdoor(with pipe)kg57

Loading Capacity20'/40'/40'HC(with pipe)55/124/146
