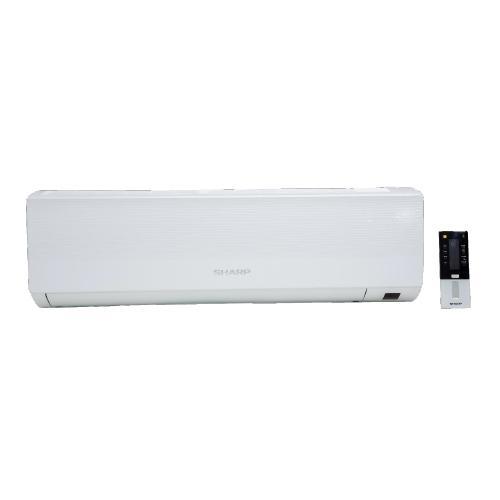

Sharp AY-A12ECI 12,000 BTU Air Conditioner Inverter model 220-240 Volt NOT FOR USA
Product Code: AY-A12ECI Product ID: 29663
Product sold by: samstores.com
Availability: In Stock New
ECO MODE
One button control to start up the mode.The air-con cools the room much faster and then operates at low frequency but keeps the desired temperature.
BACKLIGHT DISPLAY
Press any button on the remote control for 3 seconds to turn on the backlight, so that the users easily control the air-con at night.
ANTI-COLD AIR
In Heating Mode,the indoor fan speed is controlled according to the evaporatort emperature. Only when the temperature is warm enough, the fan begins to operate, preventing any cold blasting at the beginning of unit running or after defrosting period.
SLEEP MODE
To ensure the users have a sweet sleep without suffering an under-cooling or over-heating experience at night.
CoolingMode : The air-con automatically increases1perhour for 5 hours. Then decreases 1per hour.
HeatingMode : The air-con automatically decreases 1perhour to avoid over-high temperature.
AUTO RESTART
After being turned off or in case of an accidental power cut, the air conditioners are able to retain and restore the temperature and other settings, until being turned on or the power supply is resumed.
Inverter model
RUST PROOF
The considerately-devised 6-tiened anti-rusting technology enables the outdoor unit to sufferrusting, and appear clean for long period.
INTELLIGENT DEFROST
It is available for the automatic defrosting. After the defrosting is completed, it will automatically reverse to the heating operation; accordingly, it can not only fully ensure the heating effect of the air conditioner but also show a more durable effect.
TIMER
Program the automatically on/off time, it helps to save energy and provides more comfortable life for the users.
INDIVIDUAL DEHUMIDIFICATION
Freeing the users from the damp weather. It is easy to keep the clothes dry even in the rain season.
CHORD RESPONSE
With the chord music as the response sound, which gives users a pleasant feeling.
MILDEW PROOF
The fan runs 15 more minutes after the air conditioner is turned off, in order to dry the remaining water in evaporator to keep the unit from mildew.
SELF-DIAGNOSIS
The air conditioner can correctly display the error codes for easy repair and the improvement of repair efficiency and saving cost.
TECHNICAL SPECIFICATIONS
Model No. Indoor unit AY-A12ECI
Outdoor unit AE-A12ECI
Type Heating Pump
Rated cooling capacity Btu/h 11,000
W 3,220
Rated heating capacity Btu/h 11,800
W 3,450
EER for cooling w/w 3
COP for heating w/w 3.08
Moisture removal Liters/h 1.5
Pressure High(DP) MPa 4.5
Low(SP) MPa 1.9
Indoor noise level at cooling High dB{A) 44
Med. dB{A) 40
Low dB{A} 36
Outdoor noise level dB{A) 55
ELECTRICAL DATA
Power supply 220~240V~/50Hz
Voltage Range V 198~264
Rated current Cooling A 4.9
Heating A 5.2
Rated input Cooling W 1075
Heating W 1120
Annual energy consumption kwh (cooling) 537.5
Max Current Cooling A 6.4
Heating A 6.8
Max Power input Cooling W 1400
Heating W 1460
REFRIGERATING SYSTEM
Refrigerart/Charge Gram R410A
OTHERS
Suitable area m2 15~23
Net dimensions (WxHxD) Indoor mm 770x240x180
Outdoor mm 700x256x552
Packing dimensions Indoor mm 8
Outdoor mm 29
Net weight Indoor kg 855x305x255
Outdoor kg 803x590x361
Gross weight Indoor kg 10
Outdoor(with pipe) kg 35
Loading Capacity 20'/40'/40'HC(with pipe) 113/235/26S
Inverter model
220-240 volts 50 Hertz
