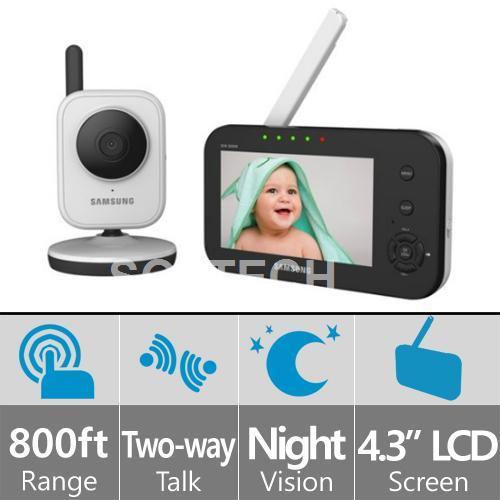

SAMSUNG SEW-3040 - SAMSUNG VIDEO BABY MONITOR

General

Operating Frequency     2.4 GHz

Transmitting Power        17dBm Max

Receiving Sensitivity       -88dBm

Type of Spread Spectrum             FHSS 15 Channels

Type of Modulation        GSFK

Date Rate            3Mbps

Transmitting Distance    250m * Range depends on obstacles between the camera and the monitor

Operating Temp. / Humidity

-10~40?C / Less Than 85%

Camera

Imaging Device                 1/5" CMOS

Total Pixel           640 x 480 (VGA)

Frame Rate         QVGA 20fps

Video Compression Format         MJPEG

White Balance   Auto

Lens Focal Length            3.0mm

Max Aperture Ratio        F2.8

Angular Field of view

56?

Min. lllumination              2 Lux without IR

IR            940nm, 5m

Speaker Out       max. 1 Watt

Power Consumption      320mA (without IR LED)

Other Special Feature    Night vision

LCD Monitor

Display Color 4.3" LCD

Resoultion          320 x 240 (CIF)

Number of Camera Support        up to 4 cameras

Speaker Output                Max. 1 Watt

Power Consumption      Max. 450mA (without charginig)

Battery                 1100mAh, 4.5hr (replaceable)

Digital Zoom       2x

Special Feature                 Auto scan/Stand by/VOX/Two way talk/Time display
