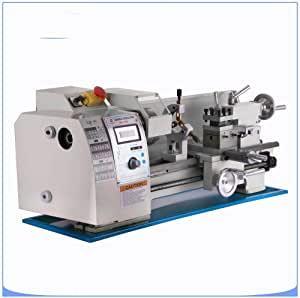

"Variable spindle speed of 50-2500 RPM.All metal gears, shell and hand wheel High precision, able to turn out standard qualified works 750W strong power, 400mm (15-3/4"") processing distance Automatic tool, infinitely variable, professional tool post Telescopic sets with scale,Wear-resistant, durable, accurate and professional"
Product Code: 999-319-880 Product ID: 32629
Product sold by: samstores.com
Availability: In Stock New
Telescopic sets with scale, you can intuitively see the length of the telescopic handle scale, precise scaling can be digitally standardized or adjusted by lateral movement.
Specification
Swing Over Bed: 8-1/4" (210 mm)
Cross Slide 4-5/8" (117 mm)
Distance Between Centers: 15-3/4" (400 mm)
Motor Power: 750W
Spindle Speed Ranges: Low 50-1250, high 100-2500 RPM
Travel: compound rest 2-1/8" (54 mm), cross slide 3" (76 mm)
Tailstock: Taper MT#2
Tail Sleeve: φ1" (25 mm)
Hole Thru Spindle: φ0.83" (21 mm),taper MT#3/MT#5
Feed speeds: (3) 0.0037"-0.0071"/rev
Inch Threads: 8-44 TPI
Metric Threads: 0.5-3.0 mm
Footprint: 31-1/2" x 10-1/2"
Spindle Accuracy: 0.0004-0.0012" (0.01-0.03 mm)
Main Engine Gross Weight: 128 lbs (58 kg)
Main Engine Package Dimensions (L* W* H): 36* 19* 17" (91* 48* 44 cm
Package
1 X 8" x 16" Variable-Speed Lathe
1 X Tool Storage Box
1 X 4" 3-Jaw Chuck
1 X 4" 4-Jaw chuck
9 X Change Metal Gears
1 X Steady rest
1 X User Manual
1 X Dead Center
1 X Set of Accessories
