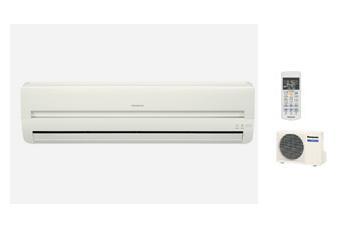

PANASONIC 24HKF 24,000 BTU SPLIT AIR CONDITIONER SYSTEM FOR 220 VOLTS

Cooling Capacity

Indoor [kW]

5.28

Indoor [Btu/h]

24,000

EER [Btu/hW]

9.05/8.78

Moisture Removal

[L/h]

2.9

[Pt/h]

6.1

Air Circulation (Indoor/High)

(Cooling) [m³/min]

15.8

(Cooling) [ft3/min]

558.0

Healthy Air Quality Features

Advanced e-ion Air Purifying System

No

New Patrol Sensor

No

Super Alleru-Buster Filter

Optional

Odour-Removing Function

Yes

Removable, Washable Panel

Yes

Comfortable Features

Inverter Control

No

Quiet Mode

No

Powerful Mode

No

Soft Dry Operation Mode

No

Wide & Long Airflow Vane

No

Personal Airflow Creation

No

Airflow Direction Control (Up & Down)

Yes

Manual Horizontal Airflow Direction Control

Yes

Automatic Operation Mode (Cooling)

Yes

Product Dimensions

Indoor [mm]

Width

998.0

Height

275.0

Depth

230.0

Outdoor [mm]

Width

780.0

Height

540.0

Depth

289.0

Indoor [inch]

Width

39-9/16

Height

10-27/32

Depth

9-1/16

Outdoor [inch]

Width

30-23/32

Height

21-9/32

Depth

11-13/32

Product Weight

Net Weight [kg]

Indoor

11.0

Outdoor

39.0

Net Weight [lb]

Indoor

24

Outdoor

86

Electricity

Rated Voltage

220/240V

Running Current

Cooling

9.8/10.0A

Power Input

Indoor (Cooling)

1,990/2050W

Technical Features

Refrigerant Pipe Diameter

Liquid Side [mm]

6.35

Liquid Side [inch]

1/4

Gas Side [mm]

12.70

Gas Side [inch]

1/2

Pipe Extension

Chargeless Pipe Length [m]

7.5

Maximum Pipe Length [m] (Additional gas may be required for some models)

25.0

Maximum Elevation Length [m]

20.0

Additional Refrigerant Gas [g/m]

20.0

Power Supply

Indoor

Convenient Features

24-Hour ON & OFF Real Setting Timer

Yes

12-Hour ON & OFF Real Setting Timer

No

LCD Wireless Remote Controller

Yes

Self-Diagnostic Function

No

Reliable Features

Auto Restart

No

Random Auto Restart (32 Restart Patterns)

Yes

Blue Fin Condenser

Yes

Long Piping (Numbers indicate the maximum pipe length)

25m

Top-Panel Maintenance Access

Yes
