OASIS PLF14FAY COLD WATER COOLER 220VOLT 50HZ

220Volt, 50Hz Cold Water Cooler with Waterways are Lead-free in materials and construction, Delivers 54 litres of chilled drinking water.

Product Code: OA-PLF14FAY   Product ID: 11821
Product sold by: samstores.com

$ 1169.99

Availability: In Stock New

Shipping Information:
Shipping Charges: $180
Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!

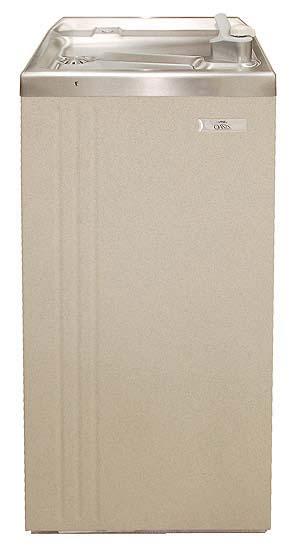

Oasis PLF14FAY
220Volt, 50Hz Cold Water Cooler with Waterways are Lead-free in materials and construction, Delivers 54 litres of chilled drinking water, Dial a Drink bubbler, Stainless Steel Top, Heavy Gauge Steel Cabinet with Separate Base, Stainless Steel Wrap Around Base, High Efficiency Cooling Tank and Coil, Environmentally Refrigerant R134A, Available in Stainless Steel and Sandstone finish, Three Types of Glass Fillers available for this model, Foot pedal available for this model.

Product Specification:



Unit Dimension:     41.43"H x 17.16"W x 14.20"D

Unit Weight:          95.7 Lb.





Technical Specification        PLF14 FAY

Volt                                           220

Hertz                                         50

Performance (litres of cold water / hour)

At 27ºC inlet water, 32ºC ambient  53.2 litres per hour

Refrigerant type                          R134a

Refrigerant charge                      135g

Power consumption                    370 Watt

Dimensions (H x W x D)                105 cm x 43.5 cm x 36 cm

Weight                                       43.5 kg

Optional Accessories(NOT INCLUDED)

026551-002                                12000 Bubbler Valve

8983                                          Bubbler Valve Gasket

9281                                          Friction Washer

026655-002                                Drain Screw

26416                                        Condenser Shroud

028965-005                                Top

026630-005                                Top Screw

028706-001                                Gasket (Under Top)

18050                                        Waste Gasket

026067-001                                Precooler or Waste Assembly

028742-001                                Insulated Cooling Tank Assembly

028660-001                                Cooling Tank Insulation (RH)

028661-001                                Cooling Tank Insulation (LH)

18456                                        Utility Cover - Painted

18480                                        Utility Cover - Stainless Steel

027040-007                                Cold Control

19743                                        Condenser

17978                                        Relay

17977                                        Overload

018379-002                                Base

026540-005                                Service Cord

027256-002                                Compressor (Includes Items 28 & 29)

22977                                        Fan Blade

027354-009                                Fan Motor

17557                                        Fan Motor Bracket

019403-001                                Side Panel - Painted

019403-002                                Side Panel - Stainless Steel

018385-001                                Front Panel - Painted

018385-003                                Front Panel - Stainless Steel

18384                                        Rear Panel - Painted

18479                                        Rear Panel - Stainless Steel

026110-001                                Shelf Assembly

028701-002                                Bubbler Spud



 This appliance is not designed for use in America. Only for countries that use 220 / 240 V electrical outlets
