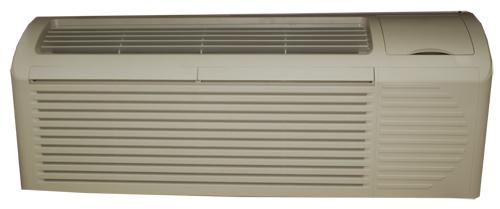

MULTISTAR MSPTH15E 230VOLT / 50HZ / 1PH PTAC TYPE 15000BTU HEAT & COOL AIR CONDITIONER

Multistar

 MSPTH15E

Performance

Final Rating Cooling

 14200@9.2-14400@9.2

Final Rating Cooling Watts

 1540-1565

Final Rating Cooling Amps

 7.4-7.2

Final Rating Electric Heat

 9300-11100

Electric Heat Watts

 2750-3300

Electric Heat Amps

 12.4-14

Voltage

 220-240

Frequency

 50

Dehumidification: pints / hour

 3.5

Design Pressure High/Low

 500PSIG  / 300 PSIG

Control Features

Controls: Mechanical - Electronic

 Electronic

Control Panel Location

 Top Right

Panel Cover

 Optional

Lockable Panel Cover

 No

indoor Fan Speeds(Cool/Fan/Speed)

 (3/3/3)

Outdoor Fan Speeds

 1/0/1

Low Voltage Start-up

 Yes

Auto Fan

 Yes

Energy Saver

 Yes

Sleep Mode

 Yes

Fliter Check

 -

24 Hour On/Off Timer

 Yes

Clean Air Ionizer(Ion Generator)

 -

Room Freeze Protection

 Yes

Random Restar Protection

 Yes

Quiet Start-Up

 Yes

Remote Control

 -

Remote Control Look

 -

Wall Mounted Controls/T'Stat

 Accessory

Unit Features

Air Volume (CFM) (High)

 330

Motor RPM (High/Med/Low)

 1160/1080/1000

Noise Level Indoors Hi(dba)

 56

Air Discharge

 Top Left Part-Width

Air Direction Control

 None

Fresh Air/ Exhaust Vent /Colsed

 Yes/No/Yes

Fresh Air/ Vent Filter

 Yes

Indoor Filter Access

 Top Slide Out

Fin Coationg

 Normal

Slide-Out Chassis

 Yes

Cabinet Louvers

 No

Sleeve/Cabinet Included

 No

Rear Grill

 Yes

Accessories Included

 TBD

Dimensions(in) Specifications

Refrigeration

 R410a

Charge (ozs)

 36.33

Cabinet Height(Inches)

 16.00

Cabinet Width(Inches)

 42.00

Cabinet Depth (Inches)

 13.75

Cabinet Depth With Front (Inches)

 21.75

Cabinet included

 NO

Window Height(Min.)

 N/A

Window Width(Min./Max.)

 N/A

Max.Wall Thickness  (Inches)

 18.00

Wall Cut-Out Height Minimum  (Inches)

 16.25

Wall Cut-Out Width Minimum  (Inches)

 42.25

Carton Height  (Inches)

 18.10

Carton Width  (Inches)

 44.90

Carton Depth  (Inches)

 25.30

Recommended Stack Height

 6

Handing Methods

 Slip Sheet, Fork,Clamp Truck

Stuffing Qty 40 ft HQ

 180

Unit Weight (Ibs)

 119

Shipping Weight (Ibs)

 139

This appliance is not designed for use in America

 only for countries that use 220V electrical outlets.

For Large Appliances above 80 pounds the shipping rates may vary depending upon state.

For Residential delivery there will additional $40 to $75 charge.

Online charges for shipping are the approximate charges not the final shipping charge.

MULTISTAR MSPTH15E 230VOLT / 50HZ / 1PH PTAC TYPE 15000BTU HEAT & COOL AIR CONDITIONER

Are you looking to replace your old AC with a new AC? Order today a new environmental friendly Multistar MSPTH15E 230VOLT / 50HZ / 1PH PTAC Type 15000BTU Heat & Cool Air Conditioner and give a smart and elegant look to your home appliance. Suitable for countries that use 220V electrical outlets, this home appliance is specially designed to give you best cooling experience in its range.

What you get

• A 220-240 volts energy saver AC with mechanical and electronic controls having final rating cooling watts- 1540-1565 and electric heat watts- 2750-3300

Excellent features including low voltage start up, auto fan, sleep mode, clear air ionizer, room freeze protection, quiet start up, remote control lock and many other
