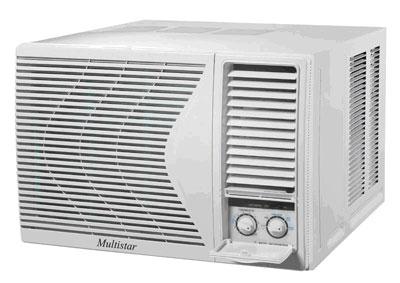

MULTISTAR MS24HCME 24000 BTU HEAT & COOL WINDOW AIR CONDITIONER

Multistar MS24HCME

* 220-240Volt 50Hz

* R410 ENVIROMENTAL FRIENDLY REFRIGERANT

* 24000 BTU Heat & Cool

* ENERGY CLASS A

* Energy Efficiency Rated(EER)

* Low Voltage Startup

* Memory Function

* Quiet Design

* Rapid Cooling

* Slide-Out Chassis.

Product Specification:

Unit Dimension:  16.9 H x 26.0 W x 30.5 D

Unit Weight:  165Lb.

Technical Specification

 MS24HCME

Function

 Cooling / Heating

Voltage

 220-240V

Hertz

 50

Total Capacity (BTU/h, Watts)

Cooling

 23,200 BTU / 6800 Watts

Heating

 21,800 BTU/ 6400 Watts

Refrigerant (kg)

 R410a (1.40 kg)

Power Input (W)

Cooling

 2150

Heating

 1870

Rated Input (W)

Cooling

 2450

Heating

 2160

Rated Current (A)

Cooling

 10.5

Heating

 9.5

  EER (W)

Cooling

 2.9

Heating

 2.9

                                                         Airflow (m3/h)

Cooling

 1000

Heating

 1000

Dehumidifying Volume (i/h)

 2.2

Energy Class

 A

Indoor Side

Fan Type Piece

 Cross flow fan - 1

Diameter-Length (mm)

 φ 224 x 109.5

Evaporator

 Aluminum fin-copper tube

Pipe Diameter (mm)

 φ 7

Row-Fin Gap

 3-1.6

Output of Swing Motor (W)

 4

Fuse (A)

 0.02

Sound Pressure Level dB (A) (H/M/L)

 55/53/51

Sound Power Level dB (A) (H/M/L )

 65/63/61

Outdoor Side

Compressor Type

 Rotary

L.R.A. (A)

 8.8

Compressor RLA (A)

 40

Overload Protector

 Interior Overload Protection

Throttling Method

 Capillary

Starting Method

 Capacitor

Working Temp Range (? )

 -7~45

Condenser

 Aluminum fin-copper tube

Pipe Diameter (mm)

 φ 7

Rows-Fins Gap(mm)

 3-1.6

Fan Type-Piece

 Axial Fan-1

Fan Diameter (mm)

 Φ 396

Sound Pressure Level dB (A) (H/M/L)

 63/51/59

Sound Power Level dB (A)  (H/M/L)

 73/71/69

Defrosting Method

 ?

Fan Motor Speed  (rpm) (H/M/L)

 1000/900/800

Output of Fan Motor (W)

 190

Fan Motor RLA (A)

 0.8

Fan Motor Capacitor (uF)

 6

Climate Type

 T1

Isolation

 I

Moisture Protection

 IP24

Permissible Excessive Operating Pressure for the Discharge Side (MPa)

 2.7

Permissible Excessive Operating Pressure for the Suction Side (MPa)

 0.6

Hi. Side Pressure

 3.0MPa

Low Side Pressure

 1.0MPa

Dimension & Weight

Unit Dimension (mm)

 428mm H x 660mmW x 775mm D

Unit Dimension (inch)

 16.9 H x 26.0 W x 30.5 D

Shipping Dimension (mm)

 490mm H x 736mm W x 860mm D

Shipping Dimension: (Inch)

 19.3 H x 29.0 W x 33.9 D

Unit weight kg /lb

 75 kg / 165Lb.

Gross weight kg /lb

 79 kg / 173.8 Lb.

This appliance is not designed for use in America

 only for countries that use 220V electrical outlets.
