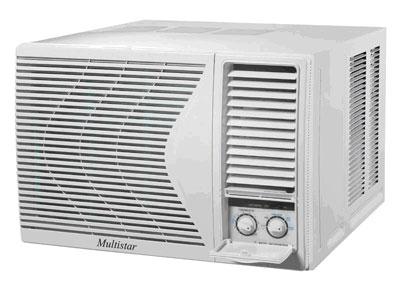

MULTISTAR MS09HCME 9000 BTU HEAT & COOL WINDOW AIR CONDITIONER 220-240 VOLTS

• Low Voltage Startup
• Quiet Design
• Memory Function
• Rapid Cooling
• 9000 BTU Heat & Cool
• Slide-Out Chassis.

Technical specification

Technical Specification                                       MS09HCME

Function                                                             Cooling / Heating

Voltage                                                              220-240V

Hertz                                                                  50

Capacity (BTU/h)

Cooling                                                              9000

Heating                                                              8000

Refrigerant (kg)                                                  R410a (0.75kg)

Power Input (W)

Cooling                                                              900

Heating                                                              820

Rated Input (W)

Cooling                                                              1160

Heating                                                              1000

Rated Current (A)

Cooling                                                              5.04

Heating                                                              4.34

  EER (W)

Cooling                                                              2.9

Heating                                                              2.9

                                                         Airflow (m3/h)

Cooling                                                              510

Heating                                                              530

Dehumidifying Volume (i/h)                                 0.8

Energy Class                                                      A

Indoor Side

Fan Type Piece                                                  Cross flow fan - 1

Diameter-Length (mm)                                       φ 222 X 90

Evaporator                                                         Aluminum fin-copper tube

Pipe Diameter (mm)                                           φ 7

Row-Fin Gap                                                     3-1.5

Output of Swing Motor (W)                               2.5

Fuse (A)                                                            ?

Sound Pressure Level dB (A) (H/M/L)               52/50/48

Sound Power Level dB (A) (H/M/L )***           62/60/58

Outdoor Side

Compressor Type                                              Rotary

L.R.A. (A)                                                         4.0

Compressor RLA (A)                                        15.5

Overload Protector                                            Outerior Overload Protection

Throttling Method                                               Capillary

Starting Method                                                 Capacitor

Working Temp Range (? )                                  -7~45

Condenser                                                         Aluminum fin-copper tube

Pipe Diameter (mm)                                           φ 7

Rows-Fins Gap(mm)                                          3-1.6

Fan Type-Piece                                                  Axial Fan-1

Fan Diameter (mm)                                            Φ 353

Sound Pressure Level dB (A) (H/M/L)               59/67/55

Sound Power Level dB (A)  (H/M/L)                 69/67/65

Defrosting Method                                             ?

Fan Motor Speed  (rpm) (H/M/L)                      920/820/720

Output of Fan Motor (W)                                   88

Fan Motor RLA (A)                                           0.4

Fan Motor Capacitor (uF)                                  5

Climate Type                                                      T1

Isolation                                                             I

Moisture Protection                                            IP24

Permissible Excessive Operating Pressure for the Discharge Side (MPa)            2.7

Permissible Excessive Operating Pressure for the Suction Side (MPa)    0.6

Unit Dimension (mm)

375mm H x 560mm W x 618mm D

Unit Dimension (inch)

14.8 H x 22.0 W x 24.3 D

Shipping Dimension (mm)

420mm H x 618mmW x 684mm D

Shipping Dimension: (Inch)

16.5 H x 24.3 W x 27.0 D

Unit weight kg /lb

44 kg / 97Lbs.

Gross weight kg /lb

48 kg / 106Lbs.

This appliance is not designed for use in America. Only for countries that use 220 / 240 V electrical outlets
