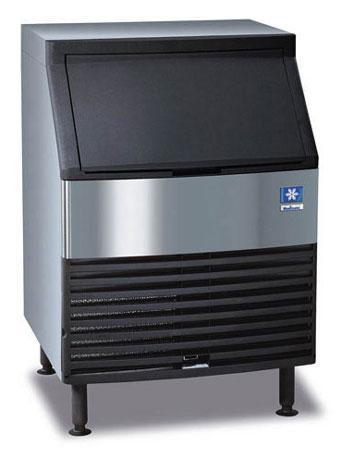

Slide up and in bin door tucks under ice machine top cover. Patented ice damper maximizes ice storage capacity
Product Code: MA-MQD0133W-Int Product ID: 24903
Product sold by: samstores.com
Availability: In Stock New
• Up to 147 lbs. (67 kgs.) daily ice production
• CEE Tier 1 energy and water efficiency rating
• Only 26" (66.04 cm) wide,26.50" (67.31 cm) deep,and 38.50" (82.55 cm) high on 6" (15.24 cm) legs
• 80 lbs. (36.6 kgs.) ice storage capacity
Slide up and in bin door tucks under ice machine top cover. Patented ice damper maximizes ice storage capacity
• Stainless steel exterior with the fit and finish of an appliance
• Patented cleaning and sanitizing technology
• R-404A CFC-free refrigerant
• Warranty
5-year parts and 5-year labor coverage on ice machine evaporator
5-year parts and 3-year labor coverage on ice machine compressor
3-year parts-and-labor coverage on all other components
Ice Machine Electric
115/60/1.(208-230/60/1 and 230/50/1 also available.) 115/60/1ice machines are factory pre-wired with a 6' (180 cm) power cord and NEMA 5-15P-plug configuration. 208-230/60/1
ice machines are factory pre-wired with a 6' (180cm) power cord only,no plug is supplied.
Total Amps:
Q-130: 115/60/1:Air-cooled: 7.0 amps / Water-cooled: 6.3 amps
208-230/60/1:Air-cooled: 3.1amps / Water-cooled: 2.6 amps
Q-210: 115/60/1:Air-cooled: 6.5 amps / Water-cooled:6.1amps
208-230/60/1:Air-cooled: 3.6 amps / Water-cooled: 3.1amps (82.55 cm)
Q-270: 115/60/1:Air-cooled: 10.7amps. / Water-cooled:9.9 amps. 208-230/60/1:Air-cooled: 5.2 amps / Water-cooled: 4.7 amps
Maximum fuse size: Air and Water-cooled: 15amps
HACR-type circuit breakers can be used in place of fuses.
24- HO UR P ROD UC TIO N † lbs. kgs.
| |||
AIR COOLED UNIT
| WA TER COOLED UNIT
| ||
air temp
| water temp
| air temp
| water temp
|
?F ?C
| 50? 70? 90? 10? 21? 32?
| ?F ?C
| 50? 70? 90? 10? 21? 32?
|
70? 21? 80? 27? 90? 32?
| 135 115 100 61 52 45 120 105 90 54 48 41 105 90 80 48 41 36
| 70? 21? 80? 27? 90? 32?
| 130 110 90 59 50 41 125 105 85 57 48 39 120 110 80 54 50 36
|
Specifications
*Air cooled:
1 Good-Uses less water- It is cooled by a fan
2 Good-Better for environment
3 Bad-Has a tendency to heat the room where it is located more than water cooled
4 Bad-Little noisier than water cooled
5 Good-Most popular
*Water cooled:
1 Good-Quieter than air cooled
2 Good-More energy efficient
3 Good-Does not raise room temperature
4 Bad-Cost for water cooled is in some cases higher
5 Bad-A lot more water is used which some consider to be a waste
6 Bad-Water bill is higher
7 Bad-Water filtration systems have to be changed more frequently because of water usage
These are the good and the bad for both. It's simply the way in which the systems are cooled
Note:
This appliance is not designed for use in America. Only for countries that use 220 / 240 V electrical outlet.
