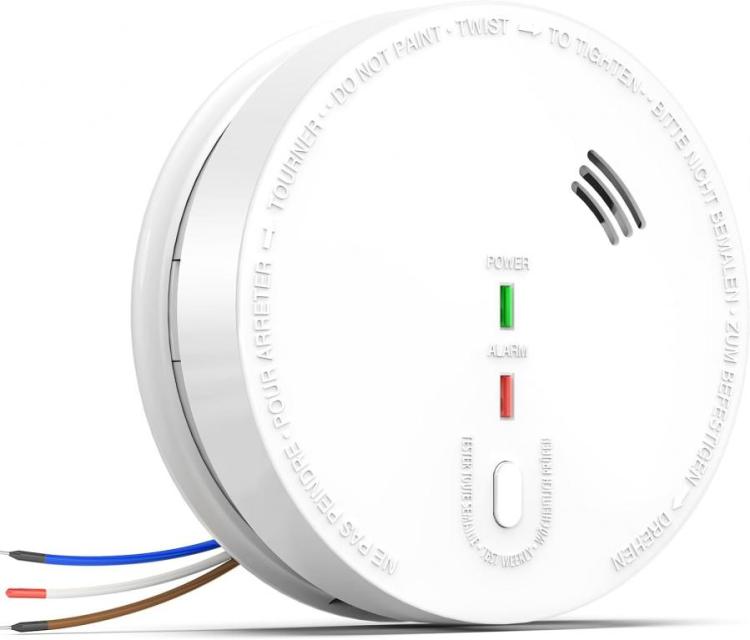

MAINS EN 14604 POWERED SMOKE ALARMS 220 VOLTS NOT FOR USA
Brand Andyssey Style Classic Power source AC Colour Mains Powered and Replaceable Battery Alarm Audible Sensor type Photoelectric Material ABS
Product Code: EN 14604 Product ID: 34367
Product sold by: samstores.com
Availability: In Stock New
Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!
- SENSITIVE DETECTION WITH PHOTOELECTRIC TECHNOLOGY: Utilizing photoelectric technology, this product excels at detecting slow-smoldering fires with thick, black smoke, providing advanced fire hazard awareness.
- VERSATILE OPERATING MODES FOR RELIABLE ALERTING: Operating on AC220~240V/50Hz power with DC9V battery backup, this alarm offers silent, interconnected, low-voltage, and fault modes for comprehensive fire safety.
- EASY INSTALLATION AND USER-FRIENDLY OPERATION: Simple installation without tools, user-friendly testing, and mute modes ensure convenient use and maintenance.
- EFFICIENT INTERCONNECTION CAPABILITY: Supporting up to 12 interconnected devices, this alarm system ensures synchronized alerts for enhanced fire hazard management.
- ADHERING TO STRINGENT QUALITY STANDARDS: Certified to comply with EN14604:2005/AC-2008, this product meets high-quality benchmarks for sound volume, sensitivity, and operational parameters.
Power SourceAC 220~240V/50Hz with DC 9V battery backup
AC Quiescent Current< 100mA
AC Alarm Current< 100mA
DC Quiescent Current< 15uA
DC Alarm Current< 45mA
Alarm Sensitivity0.095-0.175dB/m
Comply with standardEN14604:2005/AC-2008
Alarm Volume> 85dB(A) @ 3 meters.
Low Voltage ThresholdDC 7.3-8.0V
Hush timeapprox 8 minutes
Battery service life>1 year (Carbon Zinc Battery)
Humidity Range< 93% relative humidity (RH)
Temperature Range0ºC to 40ºC
Sound PatternISO8201 (BI 0.5s - pause 0.5s - BI 0.5s - pause 0.5s - BI 0.5s - pause 1.5s, with the RED LED flash, repeat this alarm pattern)
Interconnection numbersup to 12 product
Size127mm in diameter x 41.3mm depth
Technical Details
ManufacturerSiterwell Electronics Co. Ltd.
Part NumberGS517A
Package Dimensions14.6 x 13.1 x 5.2 cm; 280 g
Item model numberGS517A
ColourMains Powered and Replaceable Battery
StyleClassic
MaterialABS
Power SourceAC
Voltage230 Volts (AC)
Item Package Quantity1
Batteries included?Yes
Batteries Required?Yes
Battery Cell TypeAlkaline
Item Weight280 g
