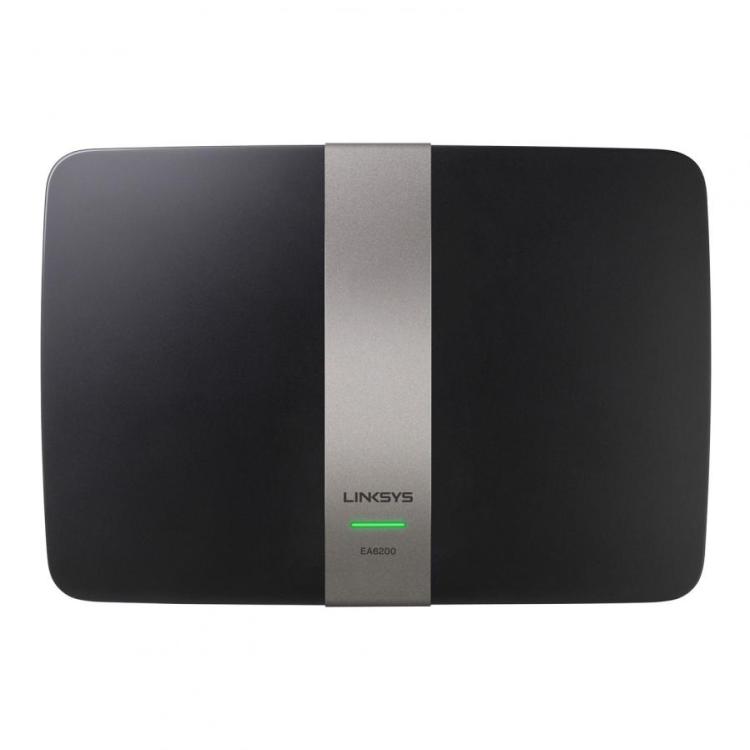

The Linksys Smart Wi-Fi Router AC 900, EA6200 is built with 802.11ac wireless technology that offers maximum speed and range to create an ultra-powerful network. It is designed for top-notch performance and connectivity for your computers, Internet-ready television (Smart TV), game consoles, smartphones, and other Wi-Fi devices at fast transfer rates for an unrivaled experience.
On the top panel of the Linksys Smart Wi-Fi Router, EA6200, the Indicator light stays steadily ON while powering up, flashes slowly during boot up, firmware upgrades, and factory reset.
USB Port - The USB 3.0 port lets you add an external Universal Serial Bus (USB) drive to your network. It supplies up to 1000 mA power on devices and supports FAT, NTFS and HFS+ storage file systems.
Ethernet 1-4 (Yellow and Green) - Connect Ethernet cables (also called network cables) to these Gigabit (10/100/1000) ports, color coded blue, and to wired Ethernet network devices on your network.
The yellow light flashes to indicate network activity over that port. The green light turns ON when the local network port is connected to a 10/100/1000 port.
Internet (Yellow and Green) - Using an Ethernet cable, the Internet port, color coded yellow, connects the router to your Internet connection, which is typically a Cable or Digital Subscriber Line (DSL) modem.
The yellow light flashes to indicate network activity over that port. The green light turns ON when the Internet port is connected to a 10/100/1000 port.
Wi-Fi Protected Setup (WPS) button - If you have client devices such as wireless printers that support Wi-Fi Protected Setup, you can press the WPS button to automatically configure wireless security for your wireless network.
Reset - This button allows you to reset the router to its factory defaults. Press and hold the Reset button for approximately 10 seconds.
Power - The power port connects to the power adapter that comes with your router.
Benefits of gigabit
Use the four (4) Gigabit Ethernet (10/100/1000) ports for quick file sharing (up to 10× faster than standard Ethernet) between other Gigabit-enabled devices like computers and servers.
The power of dual band
With the Linksys Smart Wi-Fi Router EA6200, you can double the network bandwidth with simultaneous dual-band AC (2.4 GHz and 5 GHz bands). All these features enable your network and its connected devices to avoid interference, have smoother and faster HD video streaming and file transfers, as well as experience better wireless gaming.
For your connected home, you may use the 2.4 GHz network to connect your wireless devices to surf the Internet and email, share files and print. The 5 GHz network is best for heavy applications including Voice over IP (VoIP) calls, online gaming, and streaming high-definition videos.
Keep Wi-Fi freeloaders and Internet threats at bay with WPA2 encryption and SPI firewall to help keep your network protected.
Digital Living Network Alliance (DLNA)
It also features a built-in DLNA media server for seamless streaming of your video and media files to an Xbox 360, PS3, or other DLNA-compatible devices. You can also connect a USB printer and share it across your network.
