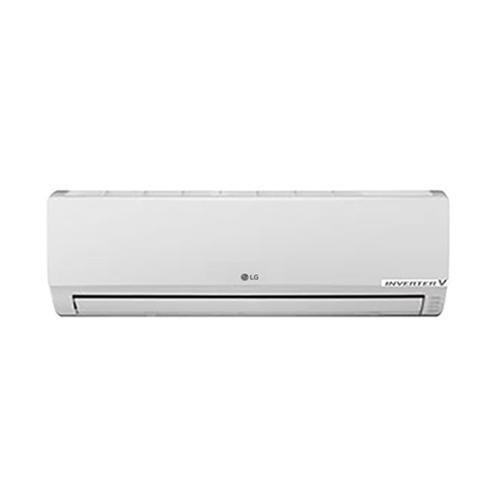

LG US-Q246C4A4 24000BTU INVERTER AIR CONDITIONER 220 VOLTS NOT FOR USA

Cooling                 3700 ~ 22000 ~ 24000 Btu/h

Elec. Rating Power Supply            1Φ, 220~240V, 50Hz

Power Supply Cable        3 x 1.5 No.*

Power and Transmission Cable 4 x 0.75 No.*+No.* (Including Earth)

Power Input (Cooling)   2010 W

Running Current (Cooling)           9.5 A

Starting Current (Cooling)            9.5 A

EER         3.21 W/W

Circuit Breaker 20 A

RPM (Cooling)   1650Po/1400H/1200M/1000L/850S-Low

Air Flow Rate Indoor,Max            19.5(689) /min(CFM)

Outdoor,Max    50.0(1,766) /min(CFM)

Special Function Moisture Removal         1.9 Kg/h

Refrigerant & Charge(at 5m)       R410A, 1,410 g

Additional Refrigerant Charge    30 g/m

Sound Level Indoor,H/M/L/SL    45 / 40 / 35 / 29 dB(A)+1

Outdoor,Max    53 dB(A)+1

Compressor Type            Twin Rotary

Model   GKT176MF

Motor Type        Brushless DC Motor

Oil Type                POE

Oil Charge           470 cc

Condenser Tube Type   Cu Cond

FPI          18 FPI

Raw × Column   2 × 28

Fan(Indoor) Type             Cross Flow Fan

Motor Type        BLDC

Motor Output   30 W

Fan(Outdoor) Type         Propeller, Fan

Motor Type        BLDC

Motor Output   85 W

Piping Connections Liquid Side   6.35(1/4) mm(in)

Gas Side               15.88(5/8) mm(in)

Max. Piping Length         20(65.6) m(ft)

Max. Elevation Difference           10(32.8) m(ft)

Drain Hose O.D , I.D        21.5,16.0(0.85,0.63) mm(in)

Dimensions Indoor (W*H*D)      1030*325*250 mm

40.6*12.8*9.84 inch

Pack Indoor (W*H*D)    1095*394*302 mm

43.1*15.5*11.9 inch

Outdoor (W*H*D)           870*655*320 mm

34.3*25.8*12.6 inch

Pack Outdoor (W*H*D)                1002*696*422 mm

39.4*27.4*16.6 inch

Net Weight Indoor          12.6(27.8) kg(lbs)

Outdoor               42.5(93.7) kg(lbs)

Set Weight Indoor           15(33.1) kg(lbs)

Outdoor               46.2(101.9) kg(lbs)

Operation Range Cooling (Indoor)            18 ~ 32 (64.4 ~ 89.6) ()

Cooling (Outdoor)           18 ~ 48 (64.4 ~ 118.4) ()

Tool Code(Chassis) Indoor + Outdoor     SC + UE
