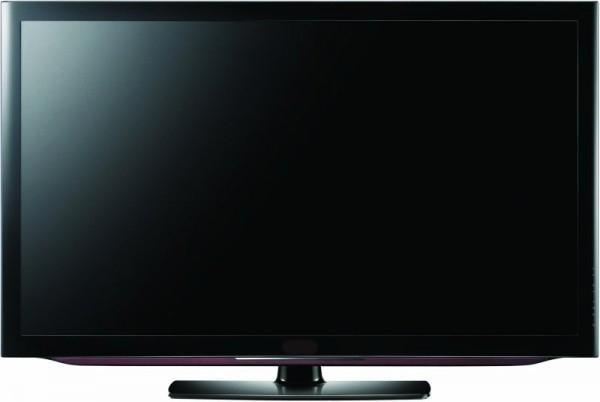

LG 42LD460 42" PAL-N, PAL-M, NTSC MULTI SYSTEM LCD TV FOR NORTH AND SOUTH AMERICA

Model: LG 42LD460 Multi-System LCD TV for North and South America

World-Wide PAL N, PAL M, NTSC 3.58, NTSC 4.43 (AV only), PAL, PAL60 (AV in only), SECAM Color System - Watch any video signal on this TV!!

World-Wide NTSC-M, PAL-N, PAL-M TV tuners - TV tuners are for South America (Brazil,Argentina, etc and North America (analog only)

Full HD 1080 with 1920 X 1080 resolution

42 inch LCD TV with 2 HDMI input and PC input

USB Connection: Watch and play your media on this TV directly. DiVX HD, Photo (JPEG), Music (MP3),

Video (MPEG1, MPEG2 TS & PS)

24P True Cinema processor allows you to view blu-ray movies at 24 frames per second (also known as

24hz), the way you see video at the movie theatre!

Supporting Video signals: 480/60i, 480/60p, 576/50i, 576/50p, 720/50p, 720/60p, 1080/60i, 1080/50i,

1080/60p (HDMI™ / Component), 1080/50p (HDMI™ / Component), 1080/24p (HDMI™)

100,000:1 Contrast Ratio

Full HD 1080 picture quality with CCFL backlight

Live Colour™ Technology with Advanced Contrast Enhancer

USB Play (Video, Music, Photo)

Intelligent Picture Plus

Widescreen 16 X 9 Format

World-wide Dual Voltage 110-240 volts 50-60 hertz

HDTV monitor (HDTV tuner required for HD reception)

This is a multisystem TV. All Multi System TVs in the market do not have a digital TV tuner: What does

this mean? To watch digital channels (ATSC Broadcasting in US and DVBT broadcasting overseas) you

need a digital source/tuner like a cable box, digital tuner, satellite service, etc. To get the best quality

video on this TV you need a source that has a digital connection like HDMI or component.

Wide Screen Mode allows you to watch conventional 4:3 aspect ratio broadcasts in wide screen (16:9)

mode.

VESA compliant mounting holes.

Favorite Channels with the WEGA GATE function, allows you to select from eight of your favorite

channels.

Steady Sound® equalizes volume levels so there is consistent output between programs and

commercials.

Built-in Speakers includes 2 (5W x 2) speakers to deliver dynamic sound.

Component Video Input offers the best video quality for DVD (480p and 480i), and digital set-top box

(1080i, 720p, 480p and 480i) connections.

Parental Control V-chip technology allows parents to block unsuitable programming from younger

viewers.

Light Sensor allows the picture brightness level to be optimized to ambient light. The effect from the

Light Sensor depends on the setting of Picture Mode and Power Saving.

PC Input allows you to connect your PC and display the PC screen on your TV.

SRS® TruSurround® Audio Effect

Specifications:

Video Features

Video Signal System: NTSC, PAL, Secam

1 Mega Pixel Panel

Display Resolution: 1920 x 1080

Native Resolution: 1080p, 1080i, 720p

33,000:1 Contrast Ratio

8ms Response Time

Wide Viewing Angle 178 degrees

Brightness 500cd/m2

3D Y/C Comb Filter

CineMotion 3:2 Pull down technology

PIP (for Freeze Function)

WEGA GATE Easy Operation Guide

Vertical Frequency (Hz): 56 / 60 / 72 / 73 / 75

Contrast Ratio: TBD

Horizontal Scan (KHz) for PC: 31/ 31.5 / 35.2 / 37.9 / 46.9 / 47.4 / 47.7 / 47.8 / 56.5 / 60 / 60.3

Overscan: Normal, +1, +2

Viewing Angle: Right/Left: 170°, Up/Down: 170°

Display Response Time: TBD

Vertical Size: +10 to -10 (TV) +50 to -50 (PC)

Vertical Center: +10 and -10 (Zoom) +10 and -10 (Wide Zoom)

Horizontal Center: +10 to -10 (TV) +50 to -50 (PC)

Screen or Display Technology: LCD

Tuner: Analog

Video Processing: One-chip Video Processor

Color Temperature: Cool, Neutral, Warm

Dynamic Picture™ Processor Circuitry: Black Corrector

Noise Reduction: Yes

CineMotion® Reverse 3:2 Pulldown Technology: Yes

Screen Modes (4:3): Wide Zoom, Normal, Full, Zoom

Screen Modes (16:9): Wide Zoom, Normal, Full, Zoom, Off

Wide Mode (16:9): Wide Zoom, Full, Zoom

Wide Mode (4:3): Wide Zoom, Normal, Full, Zoom

Comb Filter: 3D Digital Comb Filter

Phase (PC Only): Yes

Pitch (PC Only): Yes

Light Sensor: Yes

Picture Modes: Vivid, Standard, Pro

Audio

Speaker Type: Oval cone

Speakers (Total): 2

Full Range Speaker Size: 55 x 150mm (Oval)

Audio Power Output: 20W Total (10W x 2)

Audio Features

Tone Control(s): Treble and Bass

Sound Mode: Dynamic, Natural, Clear Voice, Mode Memory, Simulated

MTS Stereo Decoder: Yes

Digital Amplifier: Yes

Audio Mute: Yes

Speaker On/Off: Yes

Simulated Surround: Yes

SRS® WOW: Yes

SRS® TruSurround® Audio Effect: Yes

Convenience Features

Channel Label: Yes

Channel Skip/Add: Yes

Channel Jump: Yes

Favorite Channel: Yes

Speed Surf Channel Selection: Yes

Program Guide Access: Yes

Auto Channel Programming: Yes

Multiple Language Display: English; Español; Français

Mode Memory: Yes

Info Banner: Yes

Sleep Timer: 15, 30, 45, 60, 90, Off

Timer Events: Timer 1, Timer 2

Freeze Memo Screen Freeze: Yes (with PIP)

Clock: Yes

Picture-in-Picture: Yes

Power Save Mode: Standard, Reduced, Picture Off

Built-In AC Adaptor: Yes

Inputs and Outputs

HDMI input X 2 ( 1 Rear/ 1 Side)

USB 2.0 1 (Side) : Photo (JPEG), Music (MP3), Video (MPEG1, MPEG2 TS & PS)

PC Input x 1

Component X 1 1 (Rear, Composite Input Common Use)

Composite Video In: 3 (1 Rear Monitor Out Common Use / 1 Rear, Component Input Common Use / 1

Side)

Headphone Out x 1

Audio Out x 1

Power:

World Wide Voltage Supply AC 100-240V, 50/60Hz

Internal Power Supply: Yes

Power Consumption (in Operation): Less than 155W

Power Consumption (in Standby): Less than 1W

Regulation and Standard Compliance

Energy Star® Compliant

Approximate Dimensions (W x H x D):

Dimensions (W x H x D) and Weight:

With table stand: 1023.0 mm Wide x 685 mm High x 261.0 mm

Without table stand: 1023.0 mm Wide x 644 mm High x 76.6 mm Deep

Supplied Accessories:

Remote Control

Battery (Type AA, x2)

AC Power Cord

Note 1: WSS1905 Antenna Connector required to connect US style antenna/cable to VCR - sold on our site for $4.00

Note 2: WMF7 plug adapter required to plug this VCR into a US style power socket - sold on our site for $0.85
