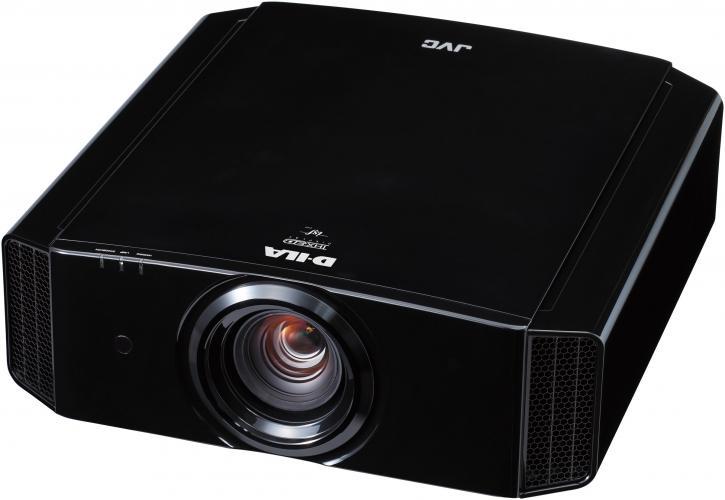

JVC PROCISION DLA-X790 D-ILA CUSTOM INSTALL HOME THEATER PROJECTOR (OPEN BOX) 110 VOLTS (ONLY FOR USA)

Features

Extraordinary Picture Quality

1900 Lumens with High Power Lamp (PK-L2615U) 265W High / 200W Normal

130,000:1 Native Contrast Ratio

Intelligent Lens Aperture increases dynamic contrast ratio to 1,300,000:1

6th generation 0.7-inch D-ILA devices

e-shift5 4K Precision 3840 X 2160 Projected Image

Dual Full Speed 18Gbps HDMI/HDCP 2.2 Compatible Inputs

- Compatible with full spec native 4K signals such as 4K60p 4:4:4 4K60p 4:2:2/36bit and 4K24p 4:4:4/36bit

- Compatible with 4K streaming devices and UHD BD content

Advanced HDR (High Dynamic Range) Compatible with HDR10 plus Hybrid Log-Gamma

Multi Pixel Control (MPC) with Auto Mode for ease of use

MPC works with 4K60P (up to 4:4:4) signals

Clear Black processing (Patent pending)

Motion Enhance (2D, 3D, 4K) with Clear Motion Drive

THX® 3D Certified

ISF (Imaging Science Foundation) Licensed— Quality installers can calibrate projector to your room

Low latency mode reduces gaming/PC frame delays

Highly customizable

sRGB and x.v. Color space

Darkness and lightness correction

Lens memory function memorizes 10 positions for focus, zoom and shift.

Maintains constant height for 2.35, 1.85, 1.78 on same screen.

Screen Mode Presets for different screen material (117 memory positions)

Convergence Correction - 1/16th Pixel Increments (2 memory positions)

Simplified 6-Axis Color Management System

Manual Gamma Control included with JVC Calibration Software

Control4 SDDP (Simple Device Discovery Protocol)

Stunning 3D Performance with RF active shutter glasses (optional)

- Advanced 3D Crosstalk Cancellation Control

- 3D Anamorphic Mode

- Parallax adjustment for fine tuning 3D effect

Accepts all modern 3D formats (Blu-ray, side-by-side, top-and-bottom)

Optimum Flexibility and Convenience

Remote control via LAN, RS-232C, IR

12V Screen Trigger Output

V: 80%/H: 34% motorized lens shift

1.4:1 to 2.8:1 lens throw

Technical Specifications


Device  0.7-inch Full HD D-ILA (1920 x 1080) x3

e-shift Technology          Yes (e-shift5 Technology)

Resolution          3840 x 2160 (2D)[1]

Lens shift function           +/-80% vertical & +/-34% horizontal, motorized

Light source lamp             NSH 265 W

Lamp life              Approx. 4500 hours in Low mode

Brightness           1,900 lm

Contrast Ratio   Native: 130,000:1, Dynamic: 1,300,000:1

Video format     Digital: 480p, 576p, 720p 60/50, 1080i 60/50, 1080p 60/50/24,3840 x 2160p 60/50/30/25/24, 4096 x 2160p 60/50/30/25/24

PC input signal

HDMI    VGA/ SVGA/ XGA/ WXGA/ WXGA+/ SXGA/ WSXGA+

Control terminals

LAN        1

RS232C 1 (D-sub 9-pin)

General

Noise level          21 dB (when the lamp is in Low mode)

Power requirement        AC110V-240V, 50/60Hz

Dimensions: W x H x D, inches    17.91 x 7.04 x 18.58

Weight, lbs         34.49
