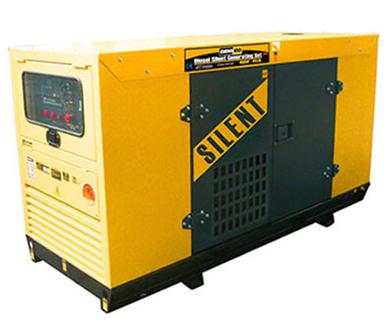

GENMAX EGDF12S-220/240VOLT, 50HZ

0

Rated output 10kW Diesel Generator,• AIR COOLER,125ATS & general control panel.,• CE, TUV certified for Europe, EPA for USA & SONCAP for Nigeria

Product Code: EGDF12S   Product ID: 13012
Product sold by: samstores.com

$ 7450

Availability: In Stock New

Shipping Information:

Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!

" Rated output 10kW Diesel Generator.

" Electric Start.

" Battery.

" 125ATS & general control panel.

" Full frame protection which looks more luxurious for easy transportation and carry.

" Large fuel tank enables 6.2-hour running.

" Brushless alternator for easy maintenance.

" Standard configuration of voltmeter enables convenient use.

" Oil alert system with automatic engine shut-off.

" Sound-absorbing panels keep lower noise.

" Silent diesel generator with four stroke.

" CE, TUV certified for Europe, EPA for USA & SONCAP for Nigeria



Product Specification:

Unit Dimension:  42 H x 30.8 W x 60 D

Product Type:  Generator



Technical Specification



Frequency (HZ)

50

Type

Brushless, with AVR



4-poles,single phase

AC output Voltage (V)

220-240

Cont.AC output (KVA)

21

Max.AC output (KVA)

22

DC output (V/A)

25-Dec

Insulation

F

Power factor (cos )

1

Construction type

Single bearing with SAE

Engine Model

Y385G

Type

three-cylinder 4-Stroke



water-cooled swirl type diesel

Displacement (l)

1.532

Engine Speed (rpm)

1800

Starting System

Electric

Max.power Output (hp)

18

Fuel Tank capacity (L)

50

Continues work (h)

12

Operating Noise Level (at 7m)

90

DIM (LxWxH) (mm)

1500x770x1050

Net weight (kg)

710



MADE IN CHINA
