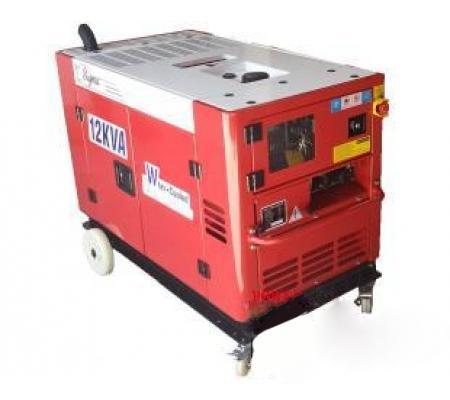

GENERATOR EV80 12000 12KVA DIESEL GENERATOR 110-220 VOLTS

5

The 12KVA Diesel Generator from Sigma is here. Its job, to power your entire home, and maintain that power level through the entire evening, while helping you maintain the comfort level you need.

Product Code: EV80   Product ID: 25129
Product sold by: samstores.com

Email for price

Availability: Not In Stock New

Shipping Information:

Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!

Type    Revolving field, 2 pole, Self-Excitation

Voltage(A.C)(V)    120/240

Engine Speed(r/min)    3600

Phase    Single phase

Power factor(cos?)    1.0

Brush type, Controlled Constant Self-excitation

ENGINE    Model    EV80

Swirl chamber type, V-Twin cylinder, 4-cycle, Water-cooled diesel engine Electronic governor

Displacement(cc)    794

Output(kw)    14

Fuel consumption (g/kw*h)    <=297

Starting system    Electric Starting with battery

Fuel/Lub.oil    0# in summer, -10# or -20# in winter, light diesel fuel/SAE 10W-30, SAE 20W-40

Fuel tank capacity(L)    25

Lub.oil capacity(L)    2.27

Bore x Stroke(mm)    80 x 79

Fuel gauge

Voltmeter

AC Circuit Breaker

Engine Switch

DC output 12V/8.3A

Low oil pressure alert

AC Socket

Wheels



Specifications:

PACKAGE    Dimension(mm)    1300*750*860*

Gross Weight (kg)    330

Net Weight (kg)    300
