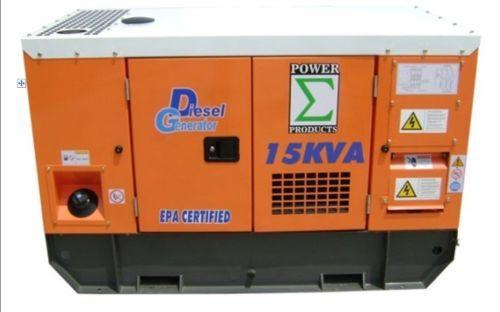

GENERATOR 15KVA DIESEL WITH ATS 220 VOLTS 50-60 HZ

GENERATOR 15KVA DIESEL WITH ATS 220 VOLTS 50-60 HZ

With the help of Generator 15KVA Diesel WITH ATS 220 Volts 50-60 Hz, you can now live a comfortable life even during power outages. The generator has a rated power of 15 KVA and has a sixty-gallon fuel tank. Thanks to the built-in muffler, the generator can also work quietly, adding to the overall convenience. As a homeowner, it is your responsibility to ensure that your loved ones stay comfortable no matter what. With the help of this generator, you can maintain the level of comfort that you and your family need without any hassle.

What you get:

• Rated power: 15 KVA
• Rated output: 17Kw
• Fuel consumption: 238g/kw.h
• Displacement: 1.53L
• Water cooled
• Electric starting with battery
• Frequency: 50-60 Hz
• Fuel tank: 60Gal
• GENERATOR 15KVA DIESEL WITH ATS 220 volts 50-60 Hz
• Noise level: 63 db at 21 feet
• Battery Included

Model of Gen-set

unit

JDP15SYD1/JDP15SYD3

Rated power

KVA

15

Rated power

Kw

12.5

Diesel engine

Model(JDPBRAND)

ASHLL1.53DDD

Rated Output

Kw

17

Fuel Consumption

g/kw.h

238

No.of cylinders

3

Bore x Stroke     mm

85 x 90

Displacement       L

1.53

Engine speed

rmp

1800

Cooling Method

Water cooled

Starting Method

Electric starting with battery

Generator

Model

TWGll164C

Rated Output

Kw

12

Rated Voltage

V

120/240

Frequency

Hz

50-60

Power Factor

0.8

Phase Connection

Single Phase/Three Phase, 12 Wires

Excitation

BRUSHLESS TYPE

INSULATION CLASS

H

PROTECTION CLASS

IP21

THD

≤3%

TIF

≤50

THF

≤2%

VOLTAGE REGULATION

1%

Standard

Control panel with protection system

WITH

Fuel tank(Gal.)

60

Muffler

WITH

AVR

WITH

ATS

Automatic Transfer Switch

Output terminal

WITH

Net Weight

Kg

790

Gross Weight

Kg

840

Packing Size(L x W x H)

mm

63’’ x 36’’ x 45.5’’
