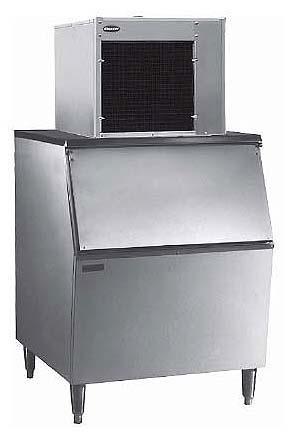

FOLLETT FMFD400WBT-INT FLAKE WATER-COOLED ICEMAKER FOR 115V, 60HZ

5

Follett’s modular flake icemakers offer the right ice for a broad range of healthcare and foodservice applications as well as exceptional reliability for long equipment life

Product Code: FO-FMFD400WBT-Int   Product ID: 24763
Product sold by: samstores.com

$ 5539

Availability: In Stock New

Shipping Information:

Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!

Difference between AIR COOLED & WATER COOLED

The refrigeration system in ice machines have to be cooled during operations because of the heat that is generated during the mechanical process. These are the two types: Air Cooled or Water Cooled

*Air cooled:

1 Good-Uses less water- It is cooled by a fan

2 Good-Better for environment

3 Bad-Has a tendency to heat the room where it is located more than water cooled

4 Bad-Little noisier than water cooled

5 Good-Most popular

*Water cooled:

1 Good-Quieter than air cooled

2 Good-More energy efficient

3 Good-Does not raise room temperature

4 Bad-Cost for water cooled is in some cases higher

5 Bad-A lot more water is used which some consider to be a waste

6 Bad-Water bill is higher

7 Bad-Water filtration systems have to be changed more frequently because of water usage



These are the good and the bad for both. It's simply the way in which the systems are cooled

Follett’s modular flake icemakers offer the right ice for a broad range of healthcare and foodservice applications as well as exceptional reliability for long equipment life. Both air- and water-cooled models use environmentally-friendly R404A refrigerant and produce approximately 400 lbs/day (181kg) of soft, moldable flake ice.

The required ice for clinical labs, rehab and medical research

• High surface area of flake ice chills quickly, maintains samples at desired temperature

• Holds test tubes and lab vials securely, even during meltage

• Molds well in ice bag and rehab applications for best skin contact, swelling control

Perfect for foodservice and grocery displays

• Cradles fish and vegetables without bruising

• Securely supports salad bar containers without tipping

Efficient, dependable design

• Continuous icemaking process saves substantial water and electricity compared to cube ice, making flake ice displays more economical

• Stainless steel frame and cabinet resist corrosion

• Heavy-duty stainless evaporator, auger and top bearing deliver outstanding reliability

• Solid-state PC board monitors torque and provides at-a-glance machine status

• Sealed gearbox and motor eliminate oil leaks

• High-pressure cut-out switch protects machines from water-loss or fan failure

Wide range of ice bins available to meet virtually every storage need

• Compatible with more than 20 of Follett’s high-quality ice storage bins

• Stainless steel exteriors and polyethylene bin liners ensure long bin lives

• Foamed CFC-free polyurethane insulation minimizes meltage

• Storage capacities from 400 lbs (181kg) , widths from 30” (762mm)

Accessories

• Water filter kit (item# 00130229)

• Ice scoop (item# ABICESCOOP)

• SafeCLEAN™ environmentally-responsible ice machine cleaner (item# 00132001)

• San Jamar Saf-T-Ice® Guardian scoop system (item# 00146365)

Water Temp. F°/C°



50/10



60/16



70/21



80/27



90/32



Water Flow: Gallons/100 lbs of ice Liters/45 kg of ice





60 227





120 454





185 700





380 1438





960 3634



Min water pressure at icemaker – PSIG





10





10





10





10





10





Air temp. F°/C° Water temp. F°/C° KWH per 100 lbs (45kg) ice



60/16 50/10



70/21 60/16



80/27 70/21



90/32 80/27



100/38 90/32



Air-cooled Water-cooled



3.4 3.9



4 4.3



4.8 4.7



5.8 5.1



7 5.5





Model



Heat rejected in BTU/hr





Air-cooled Water-cooled



to air 5000 1400



to water n/a 3600





Model Number



Cubic Volume cu ft (m)



Max. Bin Capacity lb (kg)



Width in (mm)



Depth in (mm)2,3



Height (H1) in (mm)



Height (H2) in (mm)



Req'd Door Access in (mm)



Approx. Ship Weight lb (kg)



425-30



13.8 (.39)



430 (195)



30 ( 762)



29.50 (750)



40 (1016)



24.5 (623)



31 (788)



144 (65)



650-44



20.8 (.59)



660 (299)



44 (1118)



29.50 (750)



40 (1016)



24.5 (623)



32 (813)



190 (87)



950-48



30.1 (.85)



950 (431)



48 (1220)



28.25 (718)



50 (1270)



34.5 (877)



32 (813)



207 (94)



1025-52



32.6 (.92)



1030 (467)



52 (1321)



28.25 (718)



50 (1270)



34.5 (877)



32 (813)



204 (93)





Electrical

Standard electrical – MFD models, 115V, 60Hz, 1 phase, 11.0 amps, max. fuse 20 amps. Cord and plug provided.

Alternate electrical – MFE models, 230V, 50Hz, 1 phase, 6.5 amps, max. fuse 20 amps. Cord only.Wire in accordance with all local codes.

Approximate Shipping Weight 160 lbs (73kg)

Note:

Online charges for shipping are the approximate charges not the final shipping charge.

For Large Appliances above 80 pounds the shipping rates may vary depending upon state.

Due to the size and weight of this product, this product does not qualify for In-home Delivery. It will be shipped via Curbside Drop off Freight service.

Make sure to open the packaging and fully inspect inside of the shipment for any concealed damages, before signing for delivery receipt. Damages on the outer carton are a dead giveaway.
