Good-Uses less water- It is cooled by a fan, Good-Better for environment, Bad-Has a tendency to heat the room where it is located more than water cooled

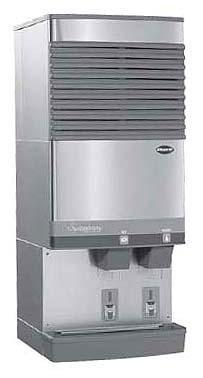

Product Code: FO-F50CR400A/W-L-Int Product ID: 24752
Product sold by: samstores.com
Availability: In Stock New
Difference between AIR COOLED & WATER COOLED
The refrigeration system in ice machines has to be cooled during operations because of the heat that is generated during the mechanical process. These are the two types: Air Cooled or Water Cooled
*Air cooled:
1 Good-Uses less water- It is cooled by a fan
2 Good-Better for environment
3 Bad-Has a tendency to heat the room where it is located more than water cooled
4 Bad-Little noisier than water cooled
5 Good-Most popular
*Water cooled:
1 Good-Quieter than air cooled
2 Good-More energy efficient
3 Good-Does not raise room temperature
4 Bad-Cost for water cooled is in some cases higher
5 Bad-A lot more water is used which some consider to be a waste
6 Bad-Water bill is higher
7 Bad-Water filtration systems have to be changed more frequently because of water usage
Convenient, sanitary, user-friendly dispensing
• Labor-saving, sanitary automatic load
• Lever dispensing standard
• Quick shut-off reduces the amount of wasted ice
• High-quality Chewblet compressed nugget ice is slow melting, easy to chew
• Clear chute ensures sanitary delivery and focuses ice cleanly into cups, pitchers, carafes, ice bags
SensorSAFE™ accessory offers even more sanitation and convenience
• Infrared sensing eliminates container to dispenser contact, reduces chance of cross-contamination
• Easy, one-hand filling of containers
• Attractive graphics direct users to actuation zone
Space-saving, attractive design
• 21" (534mm) width requires less space than competitive models of similar capacity
• Zero side clearance required for ventilation
• Softly-rounded European styling
• High-quality stainless steel exterior with plastic trim
• Attractive, user-friendly graphics
Environmentally-friendly Maestro icemakers
• State-of-the-art R404A icemaker automatically loads dispenser with 400 lbs (181kg) of ice each day
• Stainless steel evaporator and auger
• Energy-efficient; no costly defrost cycles or high waste water
• Quiet production; no noisy harvest cycles
• Satellite-fill™ icemakers can be located up to 20 feet (6m) from dispenser; remove heat, noise and bulk from customer area
Accessories
• SensorSAFE actuation (standard on wall mount models)
• Chilled water option (item# AFH20CHIL2550)
• Water filter kit (item# 00130229)
• Base stand (for models 50CT400A/W, C/E50CT400A/W) (item# AF50BASESTD)
• SafeCLEAN™ environmentally-responsible ice machine cleaner (item# 00132001)
• Slide-out track for Satellite-fill icemakers
(item# AFGSLIDER400A (air-cooled icemakers) and item# AFGSLIDER400W (water-cooled icemakers))
• Drain pan assembly for wall mount models
(item# AFH50WBASE)
Wall Mount Models
• Deduct 3.625" (92mm) from height shown
• Add .5" (13mm) to depth shown
• Wall mount bracket standard
• SensorSAFE standard
• No drain pan. Drain pan available – contact factory
Connections Utilities connect through back or bottom. Back entry shown. Supplied 2" (51mm) duct and louver must be installed for undercounter Satellite-fill icemaker installations.
Required Clearances
• Models with integral icemakers – 6" (153mm) at top for ventilation, 12" (305mm) recommended for service • Models with Satellite-fill icemakers – 12" (305mm) at top recommended for service
• See Dispenser Detail Sheet, form# 2075, for important installation information
Electrical
Standard electrical – 115V, 60Hz, 1 phase. Icemaker 11 amps, dispenser 4 amps. Cord and plug provided with each icemaker and dispenser. If local code requires hard-wiring, separate disconnects also required. Satellite-fill icemaker models require separate circuits for icemaker and dispenser.
Alternate electrical – 220V, 60Hz, 1 phase, 6.5 amps (icemaker 5 amps). 230V, 50Hz, 1 phase, 6.5 amps (icemaker 5 amps). Cord only provided with each icemaker and dispenser.Wire in accordance with all local codes.
Plug configuration – 7 ft (2.1m) cord and NEMA 5-20 hospital-grade plug provided with each dispenser. 220V/230V models, cord only.
Approximate Shipping Weight
C/E/50CT400A/W 295 lbs (134kg)
C/E/50CR400A/W 250 lbs (113kg)
C/E/50HT400A/W 310 lbs (141kg)
C/E/50HR400A/W 295 lbs (134kg)
