EXHAUST FAN 220-240 VOLT, 50 HZ BROAN BRMP200EX ( NOT FOR USA)

Exhaust Fan 220-240 Volt, 50 Hz Broan BRMP200EX ( NOT FOR USA)

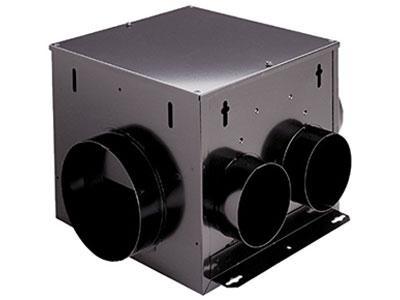

220Volt, 50Hz, Multi-Port Remote In-Line Ventilator

210 CFM Air Flow Capacity

Ventilator to have steel housing with cover that permits quick access to blower for cleaning or service, without removing ductwork.

BLOWER:

High pressure, centrifugal blowers accommodate many ducting configurations

Motors designed for continuous operation

Permanently-lubricated motors assure worry-free operation

Permanent Split Capacitor(PSC) motors are used for quiet operation and low power consumption

HVI certified to assure consistent operating performance

HOUSING:

Rugged 20 gage steel housing finished with electrically bonded epoxy paint

May be installed in virtually any orientation - ceiling, wall or floor

In-line installation assures quiet operation

Easily removable panel permits quick access to blower for cleaning and servicing without disturbing ductwork

(4) 4" round inlets and 6" round outlet for easy duct connections

All wiring and ductwork can be connected from the outside of the housing - no need to remove access panel or blower.

U.L. listed

CSA certified and HVI certified

Technical Specifications :

Voltage and Frequency : 220Volt, 50Hz

Air Flow Capacity : 210 CFM

AMCA Licensed Performance : Amp 1.3A

CFM @ Static Pressure (Ps - Inches of H20)

0.0          :               224

0.2          :               210

0.25        :               208

0.4          :               200

0.6          :               189

0.8          :               174

Nominal RPM    :               2950

Outlet Duct Size                :               6" RD

Inlet Duct Size   :               4" RD

HVI Performance             :

CFM

0.2" Ps :               210

0.4" Ps  :              200

Selection Guide

0.50 AC/HR*       :               zx120

0. .35 AC/HR*    :               4457

0. .30 AC/HR*    :               5200

Certification       :               CSA certified and HVI certified

UL Listed              :               Yes

Weight and Dimensions

Product Dimension :       9.5" H x 11" W x 10.5" D

Product Shipping Weight :            16.3 lbs.
