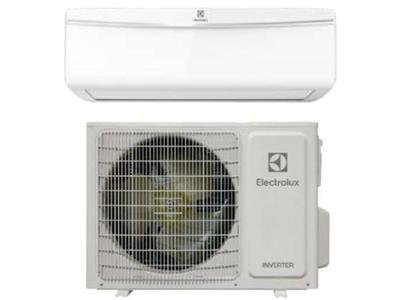

220-240 Volt, 50Hz, Split Air Conditioner 9,000 BTU Capacity 5 Speed Remote control CE Approved
Product Code: EXS09V38HW Product ID: 34622
Product sold by: samstores.com
Availability: In Stock New
Technical Specifications
Voltage and Frequency
220-240 Volt, 50Hz
Cooling Capacity
9000 BTU/Hr
Energy Consumption Cooling season
121 kWh/Year
Energy Consumption Heating season Average
922 kWh/Year
Energy Consumption Heating season Warmer
771 kWh/Year
Amps (Cool)
3.14(0.2-6.9)
Maximum Current
10 A
Maximum power input
2200 W
Controls system
Electronic
Control Panel Location in Indoor unit
Right side
Energy Efficiency Class
A++ (SEER)
Declared SEER
7.8 (W/W)
Cooling Capacity (Mass Production Control)
Declared Cooling Capacity
2700 W
Declared EER
3.80 (W/W)
Min Cooling Capacity
821 W
Max Cooling Capacity
4162 W
Heating Capacity (Mass Production Control)
Declared Heating Capacity
3400 W
Declared COP
3.71 (W/W)
Min Heating Capacity
850 W
Max Heating Capacity
4777 W
Performance
Declared Pdh in Average
2700 W
Tolerance for Capacity in Mass production
5% (MP)
Dehumidification
1.0 (l/hour)
Indoor unit setting Temp range
16~30 ?
Applicable Ambient Temp in cooling
-15~50 ?
Approximately Cool area Sq. M
13-22
Declared SEER
7.8 W/W
Declared SCOP
4.1 W/W
Tolerance for SEER/SCOP (MP)
5% (MP)
Features
Compressor type
ROTARY
Controls
Remote controller
Control Panel Location
Right
Memory Function
Yes
Fan Speeds (Cool/Fan
5×4
Low Voltage Start-up
Yes
1W Standby
Yes
Auto Fan
Yes
Turbo Fan
Yes
Self-diagnose
Yes
Water-proof of Outdoor (IP24)
Yes
Illuminating indoor unit display
Yes
Quiet Mode
Yes
ECO Mode
Yes
Low Ambient Cooling(-15°C)
Yes
24 Hour On/Off Timer
Yes
24 HourTimer ON and Timer OFF
Yes
Air Discharge position on Indoor unit
Bottom-full
Air Direction Control - Vertical Swing
Manually
Air Direction Control - Horizontal Swing
Auto
Filter Type
Anti-Bact Mesh
Filter Access
Slide-out
Active Carbon filter
Yes
Delicate dust filter
Yes
Auto Cleaning(X- FAN)
Yes
Follow me (I Feel )
Yes
Light
Yes
Evaporator Fin/Condenser Fin
Blue Fin
Remote Control holder
Yes
Dual drainage holes
Yes
Refrigerant type
R32
Indoor Unit
Indoor unit front design
AB-KLM
Indoor Color Scheme
White
Indoor Sound Pressure Level
40/34/25/21 dB (A) (Hi/Mi/Lo/Si)(1m standard)
Indoor Sound Pressure Level
35/31/25/21 dB (A) (Hi/Mi/Lo/Si)(2m)
Indoor Sound Pressure Level
35/31/25/21 dB (A) (Hi/Mi/Lo/Si)(2m)
Indoor Sound Power Level
55 dB (A)
Indoor Air Volume
515/459/294 (M³/Hr)
Indoor Motor RPM
1300
Outdoor Unit
Outdoor unit Color
White
Outdoor Sound Pressure Level
54 dB (A)
Outdoor Sound Power Level
60 dB (A)
Outdoor Air Volume
2000 (M³/Hr)
Outdoor Motor RPM
800 (C/H)
Weight and Dimensions
Indoor Unit Dimension
11.77" H x 31.61" W x 8.30" D
Indoor Unit Dimension of Carton box
14.76" H x 34.44" W x 11.61" D
Outdoor Unit Dimension
21.85" H x 30.31" W x 11.81" D
Outdoor Unit Dimension of Carton Box
23.03" H x 35.43" W x 13.58" D
Indoor Unit Weight
18.98lbs.
Indoor Shipping Weight
27.78lbs
Outdoor Unit Weight
59.53lbs.
Outdoor Shipping Weight
65.48lbs.
