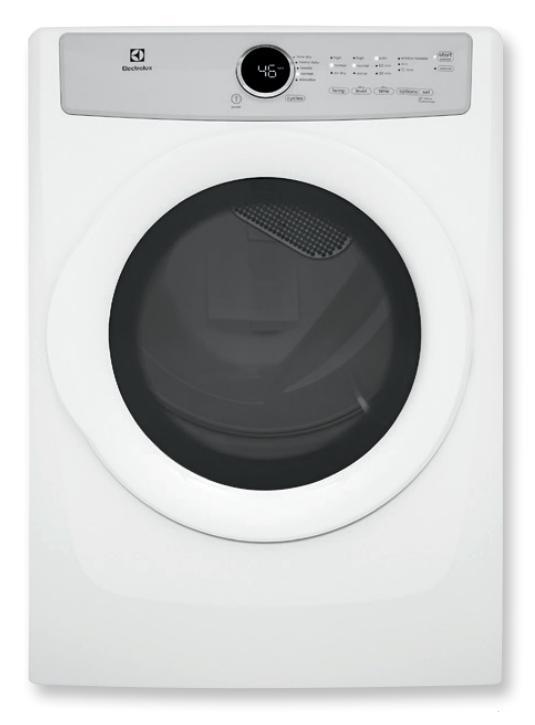

ELECTROLUX EFDE317TIW 8.0 CU. FT FRONT LOAD ELECTRIC DRYER, WHITE, 240V / 60 HZ / 30A

KEEPS CLOTHES LOOKING

THEIR BEST

Clothes are gently tumbled while moisture

sensors detect when clothes are dry to

prevent over-drying. Customizable options

and cycles allow you to care for every fabric

ENERGY STAR CERTIFIED

Rigorously tested to do more with less.

Electrolux dryers meet strict criteria to

guarantee high-quality energy efficient

performance.

LARGEST CAPACITY DRYER

Dry more in each load. Our 8.0 cu.ft. dryers

have the largest capacity for a standard

27" platform.1

PLATINUM STAR LIMITED

WARRANTY

Our exclusive limited warranty that includes

three year coverage on parts and one year

on labor.2

FEATURES

Pull-to-Open Door           Yes

IQ-Touch™ Controls        Yes

Perfect Steam    Dry System

Dry System         Luxury-Dry

Sound System   Luxury-Quiet

Lighting

Tumble System Gentle Tumble™

Moisture Sensor              Yes

Dryer Drum        Painted Steel

Tumble Speed (RPM)     50

Reversible Door                Yes

Adjustable Leveling Legs              Yes

ENERGY STAR®  Yes

NSF Certified

CYCLES

Timed Dry (Auto, 60, 30), Heavy Duty, Towels, Normal, Delicates               5

OPTIONS

Temperature Selections               3

Add Steam

Electronic Auto Dry System

Manual Timed Dry Selections     3

Eco         Yes

End-of-Cycle Chime        On / Off

Extended Tumble

Anti-Static

Line Dry

Wrinkle Release               Yes

Dryness Levels  3

INSTALLATION OPTIONS

Freestanding, Under Counter , Stacked (Above Washer),             Yes

Pedestal, Hidden (In Closet), Second Floor

4-Way Dryer Venting      Yes

SPECIFICATIONS

Color -

Island White       IW

Maximum Exhaust Duct Length** (Ft.)  125

Power Supply Connection Location          Rear

Voltage Rating   240V / 60 Hz / 30A

Connected Load (kW Rating) @ 240 Volts              6.0

Amps @ 240 Volts            25

Heating Element @ 240 Volts (Watts)     4,700

Shipping Weight (Approx.)          140 Lbs.

PRODUCT DIMENSIONS

Height (without 15" Pedestal)    38"

(with 15" Pedestal)         53-1/4"

Width    27"

Depth (to Center of Arc Not Including Hose)       31-1/2"

(with Door 90° Open)     50-5/8"

Electric Dryer Specifications

• Product Weight – 130 Lbs. / Shipping Weight – 140 Lbs.

• Voltage Rating – 240V / 60Hz/ 30A

• Single phase 3- or 4-wire cable, 240 Volt, 60 Hertz AC only electrical

supply with ground required on separate circuit fused on both sides of line.

(Do not use same circuit as washer.)

• Connected Load (kW Rating)@240 Volts = 6.0 kW

• Amps@240V = 25A

• Dryer MUST employ a 3-conductor NEMA 10-30 type SRDT or 4-conductor

NEMA 14-30 type SRDT or ST (as required), rated at 240 volt AC minimum,

30 amp power supply cord marked for use with clothes dryers (not supplied).

• Grounding through neutral link prohibited in specific applications and certain

locales, requiring use of 4-wire system. (For detailed electrical requirements,

refer to Product Installation Guide on web.)

• Always consult local and national electric & plumbing codes.

• Can be installed alone, with or without optional 15" pedestal drawer, or

stacked above matching Electrolux Washer, which requires installation of

optional dryer stacking kit. (For installation details, refer to instructions

included with optional pedestal or stacking kit or on web.)

• Can be built in alone or with matching Electrolux Washer (side by side or stacked)

in closet, recess or under counter installation with 0" minimum clearance

required around sides and back of unit(s). To achieve 0" minimum rear clearance,

dryer MUST be vented straight back or with quick-turn 90° elbow. Installation

of closet door(s) requires additional 1" minimum clearance between front of

unit(s) and door(s). Location of plumbing, exhaust and utility hookups MUST be

considered when planning any built-in installation.

• Under-counter installation requires custom-built countertop and/or cabinetry

to accommodate unit(s) height

• Do NOT install in area exposed to dripping water or outdoor weather conditions,

or where gasoline or other flammables, including automobiles, are kept or stored.

• For garage installation, dryer MUST be located minimum 18" above floor.

• Floor MUST be solid with 1" maximum slope. To ensure vibration or movement

does not occur, reinforcement of floor may be necessary. Do NOT install on

carpeted surface.

• Dryer MUST exhaust to outside of building, NOT into any concealed space.

• Dryer equipped for 4-way venting and approved for up to 125-foot-equivalent

of duct length, determined by length of run and number of elbows needed.

• Exhaust installation requires minimum 4"-diameter rigid or semi-rigid metal duct

with approved, unobstructed vent hood having swing-out damper(s). If installing

rigid metal duct (preferred), do not exceed MAXIMUM venting run length of 125 ft.,

allow deductions for elbows and vents. If installing semi-rigid metal duct, do not

exceed MAXIMUM venting run length of 8 ft., always allow deductions for elbows

and vents (Refer to Product Installation Guide on web for additional information).

Do NOT use flexible plastic or metal foil duct and use shortest run possible.

• Leveling legs supplied to level dryer properly and reduce excessive noise and

vibration.

Optional Accessories

• Pedestal Drawers – Island White (PN# EPWD157SIW).

• Dryer Stacking Kit – (PN# STACKIT7X).

• Drying Rack – (PN# A04840701).
