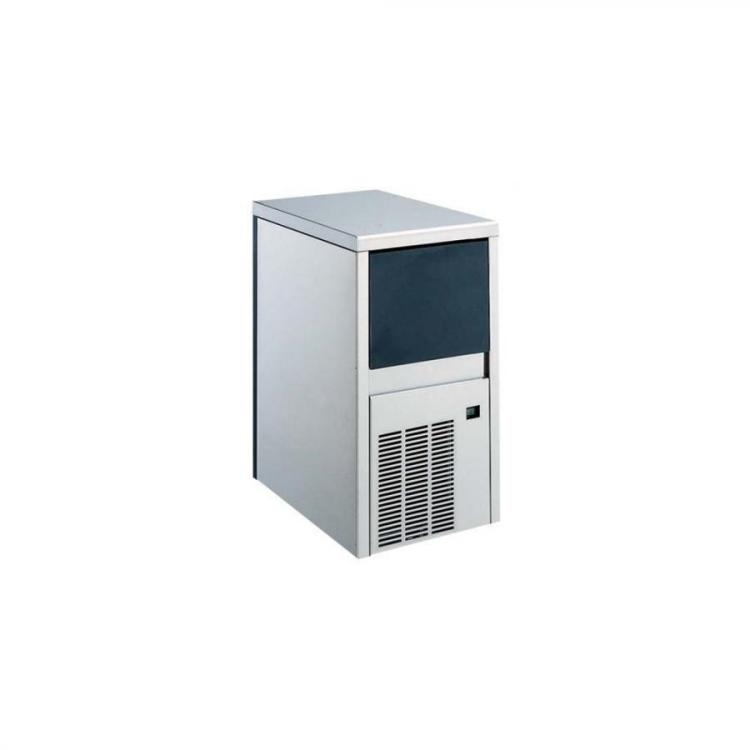

ELECTROLUX 730523 ICE MAKERS 220-240 VOLT, 50 HZ (NOT FOR USA)

Main Features

• Compliant to CE requirements for safety.

• Fully automatic in operation.

• Operates over a wide range of temperatures.

• Suitable for gravity drain only (no pumps needed).

• Rated output is at an ambient air temperature of 21°C and water supply temperature of 15°C.

• The ice-making method (spray layering) guarantees crystalline, compact, hygienically pure ice cubes that are resistant to melting.

• Model available in air-cooled version.

• Ice cube cone shape with the trunk sides slightly squashed.

• Bin integrated as standard.

• Compact dimensions of the ice cubes make the highly suitable for any location, particularly those where space is at a premium.

Construction

• Plug as standard (schuko type).

• AISI 304 stainless steel exterior.

• The inbox sprayers are easy to take away, permit a simple flowing and prevent limestone formation.

• 5mm feet.

• Internal ice cubes container in ABS.

• Easy access to the main components for maintenance.

• Stainless steel spray arms removable without the use of tools.

• Reliability guaranteed by the quality of the construction materials used (plastic flap on the front, top and sides in 304 AISI stainless steel) and the sophisticated product and process technology involved.

• Environmentally friendly: R452a as refrigerant gas.

Technical Specification

Voltage: 220-240Volt/50Hz, 1Ph

Electrical power max: 0.36 kW

Output Capacity: 28Kg/Day

Bin Capacity: 9kg

Operation: Fully Automatic

Self-Contained: Yes

Temperature

Air Temperature: 21°C

Water Supply Temperature: 15°C

Ice-making method: Spray Layering

Ice Shape: Ice cube cone shape

Exterior Body Construction: Stainless Steel

Refrigerant type: R452a

Weight and Dimension

Product Dimension: 15.35"W X 18.11"D X 27.36"H

Product Weight: 81.57 lbs.
