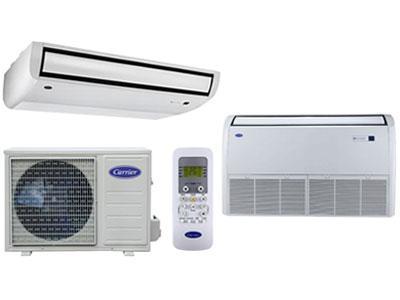

CARRIER SPIT AIR CONDITIONER CAE42QZL024DS1INT/CAE38QUS024DS1INT 220-240VOLT, 50HZ NOT FOR USA

220-240Volt, 50Hz/1Ph, Floor and Ceiling Spit Air Conditioner

7.03 (2.5~8.0) kW Cooling Capacity

7.30 (2.5~8.5) kW Heating Capacity

Slim and stylish with high performance

424/1820/2373 Yearly energy consumption

2.9 EER/3.3COP

A++ / A+ / A+++ Energy label

Inverter Console/ Under-Ceiling X Power

3D motorized louvers allow air distribution direction

Advanced slim line coil

Easy installation and maintenance

Choice of wireless (standard) or wired controls (optional)

R-410A Refrigerant Type

Technical Specifications

Voltage and Frequency :  220-240Volt, 50Hz, 1Ph

Cooling Capacity : 7.03 (2.5~8.0) kW

Heating capacity : 7.30 (2.5~8.5) kW

Heating capacity at -7°C : 5.3 kW

Heating capacity at -10°C : 5.5 kW

Heating capacity at -15°C : 4.9 kW

SEER/SCOP (average)/SCOP (warmer) : 5.8 / 4.0 / 4.6

Energy label : A+ / A+ / A++

Yearly energy consumption : 424/1820/2373

EER/COP : 2.9/3.3

Standard current (cooling) : 11A

Standard input (cooling) : 2430W

Standard current (heating) : 9.6 A

Standard inpu (heating) : 2180W

Indoor Unit

Sound power level : 65dB(A)

Sound Pressure (high/Med/Low) : 50/47/41 dB(A)

Air flow (high/med/low) : 1150/1040/790 m3/h

Outdoor Unit

 Temp range cooling-10~46 °C

Temp range heating : -15~24 °C

Refrigerant amount : 2 Kg

Liquid side/Gas side : 3/8"-5/8"

Standard piping length : 5m

Min piping length : 3m

Max piping length : 20m

Max difference : 8m

Additional charge : 15 g/m

Sound power level : 69dB(A)

Sound pressure level : 61dB(A)

Air Flow : 2700 m3/h
