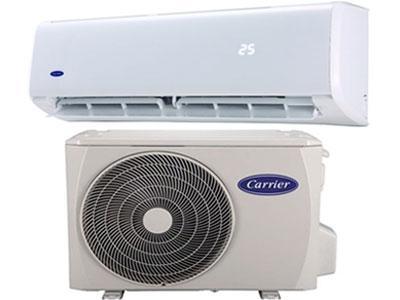

CARRIER SPIT AIR CONDITIONER 220-240VOLT, 50HZ CAE42QHC009DSINT/CAE38QHC009DSINT NOT FOR USA

220-240Volt, 50Hz, Inverter Split Air Conditioner

9000 BTU Capacity

Reverse cycle type

R410a Refrigerant type

Auto restart

Wall type

A++ Cooling Energy Efficiency Class

A+++ Heating/ Warmer Energy Efficiency Class

A+ Heating/ average Energy efficiency Class

Auto Restart with the previous operation settings in case of power failure.

Self-Diagnosis and Auto-Protection function detects abnormal operation or failures, stops the unit and indicates code for service.

Remote control with backlight LCD display.

Heat & cool

3D DC inverter-The indoor unit is equipped with a DC inverter fan motor. The outdoor unit is also equipped with DC inverter technology compressor and fan motor. With 3 DC inverter motors the unit achieves maximum performance and energy efficiency.

Triple Action Filter-Improve indoor air quality, without reducing the capacity of the air flow. They absorb and neutralize tobacco, various organic chemical substances, and food odors.

ECO Mode-New energy saving AC apply innovative ECO Mode, by pressing this button, AC will run into an 8 hour saving mode which cuts 60% energy off against normal mode.

Self-Cleaning-Indoor unit will continue running at dry mode in order to dry the indoor evaporator after the unit is switched off, so as to keep the unit clean.

Sleep Mode-This function enables the air conditioner to automatically increase or decrease cooling and decrease heating 1°C per hour for the first 2 hours, then holds stand by for the next 5 hours, after that it will switch off.

Timer-Allows you to start the unit at a preset time in the desired cooling or heating mode.

Silent Mode-Indoor fan will run at super quiet mode, achieving extremely low noise levels.

“Follow Me” mode to activate the temperature sensor built into the remote control that replaces the sensor of the indoor unit. The remote control will now control the temperature in the room that it is present for maximum comfort.

Night mode, automatically increases or decreases temperature for a comfortable sleep

High heating capacity in very low temperatures.

Dry mode -removes excessive humidity from your environment with an automatically controlled fan-speed.

Turbo mode -to reach the desired temperature quickly and effectively.

Auto-swing and fan-speed selection- for optimal air distribution in your room.

Smart Pre-Heat function- so that no cold air-drafts occur when starting heating mode.

Cold Catalyst filter, for the elimination of various contaminants.

HEPA filter, (High Efficiency Particulate Air), holds airborne particles and allergens.

High Density filter, with an increased anti-dust effect up to 50% compared to ordinary filters, holds up to 80% of dust pollen.

8°C Auto Heating function prevents water-pipes freezing inside the building when you are not at home.

Auto Defrosting protects evaporator from freezing and maintains dehumidifying effect in low environmental temperatures.

Technical Specifications

Voltage and Frequency : 220-240Volt, 50Hz

Capacity : 9000 BTU

Cooling  kW : 2.70 (0.5-3.5)

Heating  kW : 2.90 (0.6-3.8)

Heating capacity at -7°C : 2.6 kW

Heating capacity at -10°C : 2.3 kW

Heating capacity at -15°C : 2.1 kW

P design capacity cooling : 2.7 kW

P design capacity heating(warmer) : 2.7 kW

P design capacity heating(average) : 2.4 kW

Temp range cooling : -15~46 °C

Temp range heating : -15~24 °C

SEER / SCOP(warmer) / SCOP(average) : 7.2 / 5.2 / 4.0 W/W

Energy label : A++ / A+++ / A+

Yearly energy consumption : 131 / 727 / 840 kWh

EER/COP : 3.3 / 3.7 W/W

Standard current (cooling) : 3.7 A

Standard input (cooling) : 820 W

Standard current (heating) : 3.5 A

Standard input (heating) : 780 A

Rated current : 10.0 A

Rated input : 2200 W

Refrigerant amount : 0.67 kg

Liquid side/ Gas side : F6.35/F9.52 (1/4"/3/8") mm(inch)

Refrigerant type : R140a

Indoor Unit

Indoor fan motor Input : 22 W

Indoor fan motor max current : 0.5 A

Sound pressure level (high/med/low/silence) : 38/34/30/21 dB(A)

Air flow (high/med/low/silence) : 460/380/280/190 m3/h

Weight (Net/Gross) : 8.0 / 10.5  kg

Dimensions : 11.45”H x 28.74”W × 7.55”D

Packing : 14.76”H x 31.49”W × 10.82”D

Outdoor unit

Sound power level : 61 dB(A)

Sound pressure level : 54 dB(A)

Airflow : 1700 m3/h

Weight (Net/Gross) : 23.0 / 25.0 kg

Dimensions : 21.65”H x 27.5”W × 10.82”D

Shipping Dimension : 24.21”H x 32.08”W × 12.79”D
