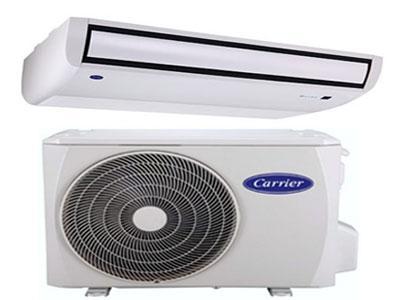

CARRIER 42QZL/38QUZ024DS SPLIT AIR CONDITIONER 220-240 VOLT, 50 HZ NOT FOR USA

220-240Volt/ 50Hz, Floor/Ceiling Type Split Air Conditioner

24000 BTU Capacity

Inverter

Gas type R410a

Heat & Cool

Auto restart

3D motorised louvers allow air distribution direction according to individual preferences.

Advanced slimline coil.

Easy installation and maintenance: all internal components can be easily accessed by removing the grille.

Remote control

3D DC inverter-The indoor unit is equipped with a DC inverter fan motor. The outdoor unit is also equipped with DC inverter technology compressor and fan motor. With 3 DC inverter motors the unit achieves maximum performance and energy efficiency.

Self-Cleaning-Indoor unit will continue running at dry mode in order to dry the indoor evaporator after the unit is switched off, so as to keep the unit clean.

Sleep Mode-This function enables the air conditioner to automatically increase or decrease cooling and decrease heating 1°C per hour for the first 2 hours, then holds stand by for the next 5 hours, after that it will switch off.

Timer-Allows you to start the unit at a preset time in the desired cooling or heating mode.

Slim and stylish with high performance

Technical Specification

Power supply: 220-240 Volt/ 50Hz/ 1ph

Cooling Capacity: 7.03 kW (2.5~8.0)

Heating Capacity 1: 7.30 kW (2.5~8.5)

Heating capacity at -7°C: 5.3 kW

Heating capacity at -10°C: 5.5 kW

Heating capacity at -15°C: 4.9  kW

SEER/SCOP (average)/SCOP (warmer): 5.8 / 4.0 / 4.6 W/W

Energy label: A+ / A+ / A++

Yearly energy consumption: 424/1820/2373 kWh

EER/COP: 2.9/3.3 W/W

Standard current (cooling): 11 A

Standard input (cooling): 2430 W

Standard current (heating): 9.6 A

Standard input (heating): 2180 W

Indoor Unit

Sound power level: 65 dB(A)

Sound pressure level (high/med/low): 50/47/41 dB(A)

Air flow (high/med/low): 1150/1040/790 m3/h

Weight (net/gross): 27.0/32.0 kg

Dimensions (WxDxH): 1068x675x235 mm

Outdoor Unit

Temp range cooling: -10~46 °C

Temp range heating: -15~24 °C

Refrigerant amount: 2kg

Sound power level: 69 dB(A)

Sound pressure level: 61 dB(A)

Air flow: 2700 m3/h

Weight (net/gross): 50/54.5 kg

Dimensions (WxDxH): 845x363x702 mm
