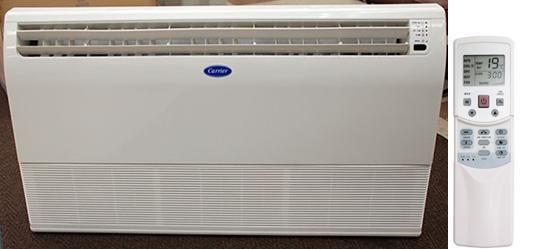

CARRIER 42QZ018NS/38QU018NS WALL & FLOOR MOUNT SPLIT AIR CONDITIONER 220 VOLTS NOT FOR USA

220-240 Volt/ 50 Hz/ 1 ph, Wall & Floor Mount Split Air Conditioner

18000BTU Capacity

R410A Refrigerant Type

Rotary Type Compressor

Wireless Remote Controller

Fixed speed

For cooling operation. Indoor temp. upper limit is 32, lower limit is 18. Outdoor temp. upper limit is 46, lower limit is -15

For heating operation. Indoor temp. upper limit is 27, lower limit is 0. Outdoor temp. upper limit is 24, lower limit is -15

Technical Specification

Voltage                220-240 Volt

Hertz     50 Hz

Phase    1 ph

Cooling Capacity               18500 Btu/h

Cooling Input     2.10 kW

EER         8.8 Btu/h.W

Heating Capacity              19000 Btu/h

Heating Input    1.73 kW

COP       11.0 Btu/h.W

Power Supply From        Indoor

Controller            Wireless Remote

Indoor Air Flow (Hi/Med/Lo) (No duct)  1150/950/800 m3/h

Indoor sound level (sound Pressure)(Hi/Med/Lo)*2       53/48/43 dB(A)

Compressor Type            ROTARY

Outdoor Noise Level (Sound pressure)                  61 dB(A)

Refrigerant Type              R410A

Refrigerant Quantity      1.5 kg

Design Pressure               4.2/1.5 MPa

Refrigerant Piping Liquid side/ Gas side                 Φ6.35/Φ12.7

(1/4"/1/2") mm

Refrigerant Piping Max. pipe length        25 m

Refrigerant Piping Max. difference in level           15 m

Weight and Dimension

Unit Dimension (HxWxD)             Indoor: 235 x 1068 x 675

Outdoor: 555 x 770 x 300

Unit Weight        Indoor: 24 kg.

Outdoor: 36.5 kg.

Shipping Weight               Indoor: 29 kg.

Outdoor: 38.8 kg.
