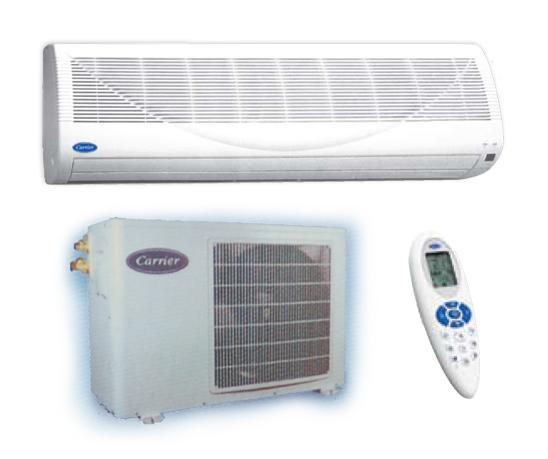

CARRIER 42QG24-C / 38QG24-C 24000 BTU SPLIT AIR CONDITIONER FOR 220 VOLTS ONLY

Carrier 42QG18-C / 38QG18-C

• 24000 BTU Cool Only
• Light Weighted Indoor Unit of functional design
• Remote control with big display to facilitate use
• Exclusive 4 stage air filtration system consisting of anti bacterial pre-filter, carbon filter, washable self renewing photo-catalytic filter and anti bacterial fan treatment
• Optional additional features to improve IAQ further Carbon and Photocatalystic air filter to remove odors and cigarette smoke respectively
• Optional ionizer, to improve indoor air quality
• Optimized thermal distribution (patented air management system, AMS, and horizontally motorized air flaps) for optimal distribution of air
• Ease of maintenance: self diagnostic function; easy accessibility of all components through grille; washable filter and front grille.

Product Specification:

Accessories:  OPTIONAL ACCESSORIES

• Set of Carbon filter and photo-catalytic
• filter for odour and cigarette smoke
• Removal respectively
• Ionizer (factory installed)
• Carrier remote controller
• PTC starting device to start compressor at low voltage down to 187V

• Indoor Unit Model                                          42QG24-C

  Outdoor Unit Model                                       38QG24-C

  System Size                                                     24

  Cooling Capacity                                              7,03

  Cooling Capacity                                              24000

  Power Input (Outdoor + Indoor) KW               2430

  E.E.R Btu/WH                                                  2,89

  E.E.R W                                                           9,88

  C.O.P W/W

  Indoor Unit Model                                          42QG24-C

  Dehumidification l/h                                           2,8

  Nominal air flow(low/med/high) cfm                   795/875/950

  Sound Pressure (low/med/high) dB(A)               45/47/49

  Sound Pressure (low/med/high) dB(A)               49/51/53

  Dimensions(LxHxD) mm                                   1080X295X185

  Weight Kg                                                        14

  Indoor Fan Motor Type                                    PSC-TOTALLY ENCLOSED

  Outdoor Unit Model                                       38QG24-C

  Compressor Type                                             Rotary

  Refrigerant Type                                               R22

  Maximum Pipe Length m                                   20

  Maximum Height Difference m                           10

  Sound Pressure dB(A)                                      62

  Sound Power dB(A)                                         67

  Dimensions(LxHxD) mm                                   860x575x350

  Weight Kg                                                        58,5

  Outdoor Fan Motor Type                                 PSC-TOTALLY ENCLOSED

  Pipe Connection Type                                       Flare

  Pipe Connection Sizes Liquid   5/8



  Suction                        3/8

  Drain                           5/8



  Recommended wire size / No. of wires for power supply to outdoor unit mm
