Powerful for all DIY applications - the Bosch PMF 190 E cuts, saws and sands Stepless electronics for variable speed of 15,000 - 21,000 oscillations per minute Universal screw allows accessories to be attached easily and quickly Smaller tool body and ergonomic soft grip for optimal handling and control of the tool 4 step depth stop for precise cuts with the segment saw blade

Product Code: PMF 190 E   Product ID: 26075
Product sold by: samstores.com

$ 264.49

Availability: In Stock New

Shipping Information:

Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!

Product Description


Product Description

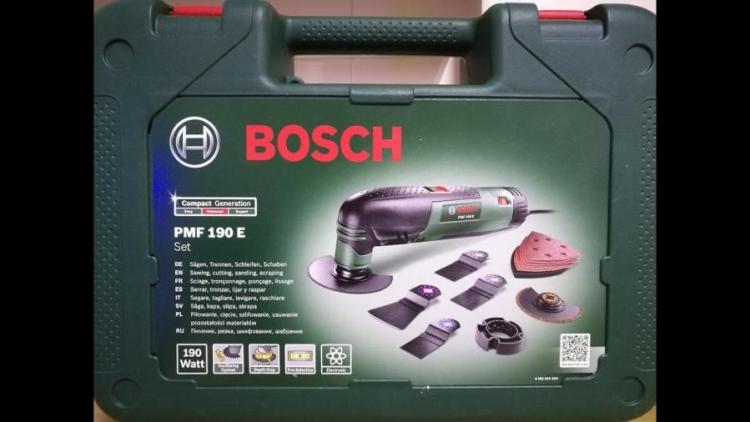

The Bosch PMF 190E


The Bosch PMF 190 E all rounder has a wide range of applications from cutting and sawing wood, sanding plastic or metal to scraping and grout removal. Even in the tightest of corners and edges it can be used thanks to its ergonomic design and handy accessories.


Compared to the previous version the PMF 190 E is easier to use due to the softgrip and reduced vibrations, the noise level has also been reduced. Bosch has optimized the ergonomics by reducing the size of the handle. The variable speed pre-selection allows you to match the working speed to the material with the 190 watt motor providing high power for all applications. The more you work with it, the more you will appreciate its abilities: its handiness, power, and manoeuvrability in tight spaces.



Cutting in Soft Wood and Plastic (AIZ 32 EC)


You can make a variety of useful cuts with the plunge cut saw blades for soft wood and plastic. With this handy saw blade you can make cut-outs, for example, in door frames or in furniture to access wall outlets.



Cutting in tight spaces (ACZ 85 EB)


Short or long cuts, in the middle or at the very edge, the PMF 10.8 LI and the BIM Segment Saw Blade with depressed centre cuts areas that conventional machines only reach with extreme difficulty if at all. Parquet floors are cut flush in no time, protruding wood and new drainpipes will be cut to the right length quickly.



Sanding Plate and sheets (AVI 93)


Sand smooth surfaces on furniture, curves or even when working on bodywork. The high level of power, low vibration and the PMF’s light weight, you’ll find you can achieve impressive results without the need to apply a lot of pressure.



Depth Stop


The depth stop ensures precise cutting depths. It can be easily attached at the clipping neck of the PMF 190 E on top of the segment saw blade series ACZ 85 and ACZ 100. As shown in the picture, depending on the adjustment of the depth stop, precise cuts in 4 steps between 8 mm and 14 mm with ACZ 85 blades and between 14 mm and 20 mm with ACZ 100 blades can be executed comfortably.



Oscillation: the Secret to the All Rounder’s Success


The technical secret behind the versatility of the PMF 190 E is its oscillation principle: accessories do not have a circular motion, but rather oscillate at an angle of ±1.4 degrees - enabling most precise cutting, sanding and sawing.

Product Information

Technical Details

Part Number      0603100570

Item Weight       2.5 Kg

Product Dimensions       29.1 x 38.6 x 11 cm

Item model number       0603100570

Style      PMF 190 E

Power Source    Corded

Wattage               190 watts

Plug Format        G - 3 pin British

Batteries Included?         No

Batteries Required?        No

Weight 2.5 Kilograms
