AEG 222392 DDLE ELECTRONIC TANK LESS WATER HEATER LCD DOGS CARRIER BAG 220 VOLTS NOT FOR USA

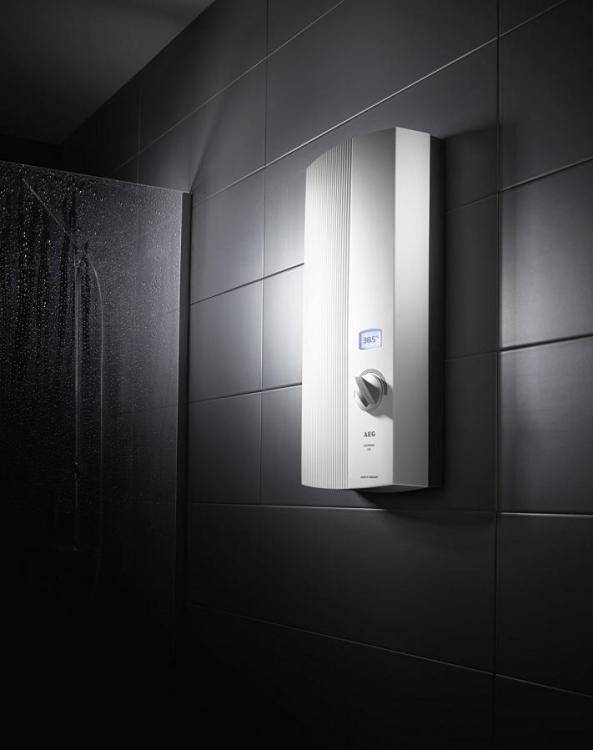

Instantaneous water heater with accurate temperature selection via clear LCD display

To supply one or more connections such as washbasin, shower, kitchen sink

Temperature range reaches 30 deg C to 60deg C

Technical Details

Part Number      222392

Item Weight       4 Kg

Product Dimensions       22.6 x 9.3 x 48.5 cm

Item model number       222392

Style      18 kW

Voltage                400 volts

Item Package Quantity  1

Sound Level       15 dB

Batteries included?         No

Batteries Required?        No

Weight 4 Kilograms

Product Description

AEG electronic instantaneous heater DDLE LCD 18, 18 kW, 400 V, white Instantaneous heater, electronically controlled. Fast control electronics. Accurate temperature selection (from 30 ° C to 60 ° C) via clearly legible LC display. Solar suitable for inlet temperatures up to 60 ° C. Integrated diagnostic system, electronic air detection. Heating block made of glass fibre reinforced polyamide. 4 heating coils directly lying in the water. Measuring turbine for precise flow rate detection. Connectivity for remote and direct connection. For connection to VPE plastic tubes with DVGW-test mark. Easy installation via separate mounting plate and screw cap, with mounting template, cover disassembly from the front, without screws, electrical connection from above or below. Power supply with fixed connection. Under-table mounting possible with accessories. Connection to all common closed fittings. Quality and safety signs: CE mark, VDE/GS mark, interference suppression symbol/EMC. Application: To supply one or more nearby taps To supply basin/shower/kitchen sink/bath tub (bath tub from power 21 kW) Use in private or commercial sector Equipment Sleek design, only 93 mm depth Calcification insensitive via heating coils which are directly lying in the water Extensive security systems for the case of an error Power supply with fixed connection Assembly Right in the shower and bath area mountable - water jet protection IP 25 Suitable for over-sink mounting, with mounting kit UT 104 also suitable for under sink mounting Clever mounting system: - Universal mounting plate with screw top, fits onto the wells of most other manufacturers, with one rotation everything is fixed - Hood assembly from the front, without screws - Electrical connection from top or bottom - Universal Water connection for remote and direct connection, Installation also in connection with plastic pipe systems (see manufacturer's instructions) Features: Electronic water heater with high temperature comfort Almost constant outlet temperature during pressure fluctuations, inlet temperature and voltage variations Accurate temperature selection through easy to read LC display Fast control electronics for maximum shower comfort Solar suitable for inlet temperatures up to 60 ° CLC display Integrated diagnostic system Electronic air bubble detection Selectable output at DDLE LCD 18/21/24 (at 18 kW fuse min. 32 A)
