Instantaneous water heater with good temperature comfort Continuous temperature setting of approx. 30 deg C to 60 deg C The power is supplied via a permanent installation

Product Code: 222388   Product ID: 28857
Product sold by: samstores.com

$ 1012

Availability: In Stock New

Shipping Information:

Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!

Instantaneous water heater with good temperature comfort

Continuous temperature setting of approx. 30 deg C to 60 deg C

The power is supplied via a permanent installation


Technical Details

Part Number      222388

Item Weight       4 Kg

Product Dimensions       22.6 x 9.3 x 48.5 cm

Item model number       222388

Style      18 kW

Voltage                400 volts

Item Package Quantity  1

Sound Level       15 dB

Batteries included?         No

Batteries Required?        No

Weight 4 Kilograms


Product Description

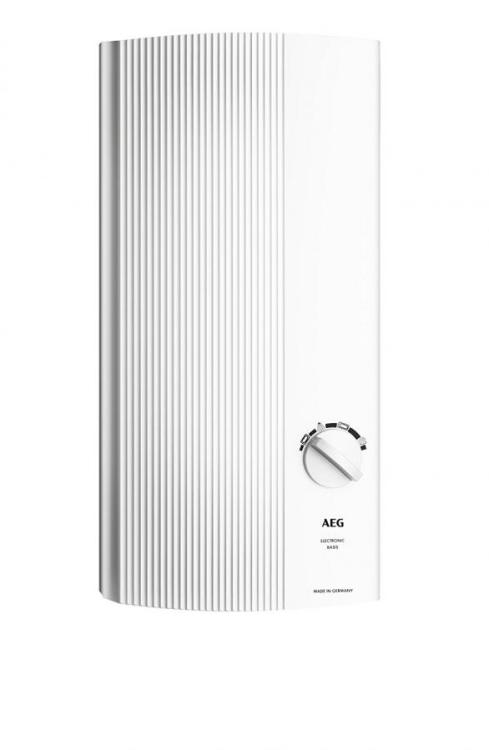

AEG electronic instantaneous heaterDDLE base 18, 18 kW, 400 V, white Instantaneous heater, electronically controlled. Electronics with good temperature stability. Temperature selection (approximately 30 ° C to 60 ° C). Heating block made of glass fibre reinforced polyamide. 4 heating coils directly lying in the water. Measuring turbine for precise flow rate detection. Connectivity for remote and direct connection. For connection to VPE plastic tubes with DVGW-test mark. Easy installation via separate mounting plate and screw cap, with mounting template, cover disassembly from the front, without screws, electrical connection from above or below. Power supply with fixed connection. Under-table mounting possible with accessories. Connection to all common closed fittings. Quality and safety signs: CE mark, VDE/GS mark, interference suppression symbol/EMC. Application: To supply one or more nearby taps To supply basin/shower/kitchen sink/bath tub (bath tub from power 21 kW) Use in private or commercial sector Equipment Sleek design, only 93 mm depth Calcification insensitive via heating coils which are directly lying in the water Extensive security systems for the case of an error Power supply with fixed connection Assembly The installation shall be made by the skilled artisans Right in the shower and bath area mountable - water jet protection IP 25 Suitable for over-sink mounting, with mounting kit UT 104 also suitable for under sink mounting Clever mounting system: - Universal mounting plate with screw top, fits onto the wells of most other manufacturers, with one rotation everything is fixed - Hood assembly from the front, without screws - Electrical connection from top or bottom - Universal Water connection for remote and direct connection, Installation also in connection with plastic pipe systems (see manufacturer's instructions) Features: Electronic instantaneous water heater with good thermal comfort Largely constant outlet temperatures at pressure and inlet temperature fluctuations Variable temperature setting with application icons Fast control electronics for high temperature stability Electronic air bubble detection Selectable output at DDLE base 18/21/24 (at 18 kW fuse min. 32 A)DDLE base for the kitchen: 11 and 13 kW
