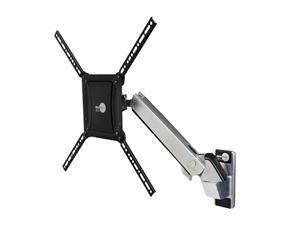

OMNIMOUNT PLAY40 ACTIONMOUNT MOUNTING ARM FOR FLAT PANEL DISPLAY

OMNIMOUNT Model PLAY40

Type

Monitor Arm

Specifications

Fits most: 30 ~ 55" TVs/displays

Supports: 18 ~ 40 lbs. (8.2 ~ 18.2 kg)

Tilt: +10 ~ -15 Degree C

Pan: 180 Degree C

Mounting profile: 5.5" (140mm)

Maximum extension: 24" (610mm)

Vertical/horizontal movement: 20" (508mm)

VESA compliant: 200 (w) x 100 (h) ~ 600(w) x 400(h)

Mounting: Single-stud or solid wall

Color: Polished Aluminum with black trim

Features

Offers 20" (508mm) of smooth, continuous vertical and horizontal movement of the TV/display in all directions

Patented Constant Force technology enables light-touch adjustments without knobs or levers

Gravity pivot enables tilting capabilities without the need for knobs or levers

Extends 24" (610mm) from wall when in use and retracts to 5.5" (140) when not in use

Improves ergonomic viewing for TVs/displays mounted high on the wall

Constructed from polished aluminum and black trim for maximum strength and aesthetics

Tilt and pan for maximum viewing flexibility

+/- 5 Degree of post-installation leveling

Cable management clips on the underside of the mount arm route and hide wires

Includes complete hardware kit
