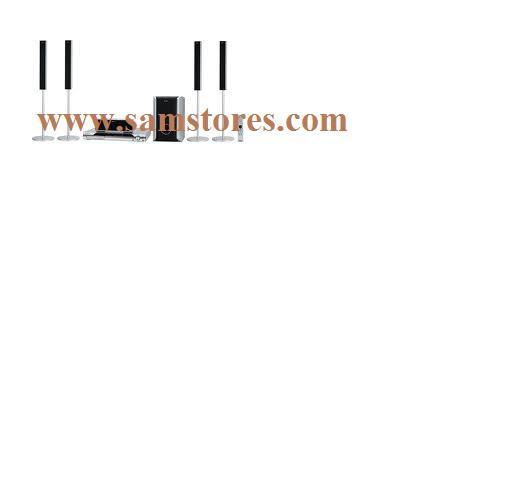

SONY DAV-DZ870KW MULTI-SYSTEM HOME THEATRE 110-220 VOLTS

1000W Total Power Output

S-Master Digital Amplifier

FM/AM Tuner with 30 Presets

BRAVIA Sync

Digital Cinema Auto Calibration (D.C.A.C)

Dolby Pro Logic II

Bass Boost Function

USB Connectivity

HDMI Output

DIGITAL MEDIA PORT

Movie / Music Mode

Night Mode / Dialogue Enhancer

Karaoke Scoring Function

Digital Cinema Sound

OUTPUT

Power Output - Front (RMS)

143W x 2

Power Output - Center (RMS)

143W

Power Output - Surround (RMS)

143W x 2

Power Output - Subwoofer (RMS)

285W

Power Output - Total (RMS at 10% THD)

1000W

AMPLIFIER

S-Master

Yes

Audio Line IN/OUT (Analogue)

2 /

Audio Input (Front, mini)

1

Video Signal IN/OUT (Composite)

/ 1

Video Signal IN/OUT (Component)

/ 1

Video Signal OUT (HDMI)

Yes (1080p)

USB

1

Mic Input Jack (3.5mm / 6.3 mm)

2

D.C.A.C (Auto Calibration)

Yes

Bass Boost Function (Dynamic Bass on RM)

Yes

Night Mode (Normal/Plus)

Plus

Portable Audio Enhancer

Plus

Dolby Pro Logic/Dolby Pro Logic II

/ Yes

Dolby Digital

Yes

DTS

Yes

Multi Stereo (Link)

Yes

A/V Sync (Lip Sync)

Yes

Speaker Formation

Yes (high)

Timer (REC/PLAY/SLEEP)

Yes ( / / Yes)

Yes

BRAVIA Sync

Yes

DIGITAL MEDIA PORT

1

Audio Line IN/OUT (Optical)

1 /

Audio Line IN/OUT (Coaxial)

1 /

Digital Cinema Sound (Virtual Multi Dimension)

Yes

KARAOKE

Mic IN/VOLUME/ECHO

Yes / Yes / Yes

Karaoke Scoring

Yes

Karaoke-PON (Only DVD Function)

Yes

Multiplex (Only DVD Function)

Yes

Key Control (Only DVD Function)

Yes

USB MEMORY

Decoding Format for Sound (Playback)

MP3, WMA, AAC, JPEG

Enccoding Format for Sound (Record)

MP3

MP3 File Name/ID3Tag Ver. 1.1/ID3Tag Ver. 2.0)

Yes / Yes / Yes

Play Mode (Normal)

Yes (1 DEVICE)

Play Mode (Shuffle)

Yes (1 FOLDER)

Play Mode (Repeat)

Yes

Play Mode (Resume)

Yes

Recording Source (CD)

Yes

Recording Source - DATA DISC (MP3)

Yes

Recording Mode - Nomal (CD)

Yes (by disc / by track)

Recording Mode - Normal (DATA DISC - MP3)

Yes (by folder / by track)

Recording Mode - Program

Yes (CD only)

Recording Speed - CD

2.5X

Recording Speed - DATA DISC (MP3)

20X Max

Edit - ERASE (ALL / 1 FOLDER / 1 TRACK)

/ Yes / Yes

TUNER

Band

FM / AM

External FM/AM Antenna

Yes (FM: 75 ohm)

Station Preset

FM20 / AM10

Tuning Range (AM)

530 ~ 1602 kHz (9k step)

Tuning Range (FM)

87.5 ~ 108.0 MHz

DVD/SACD/VCD/CD PLAYER

Type

1 Disc Tray

DVD/DVD Audio/SACD/CD/Video CD

Yes / / Yes / Yes / Yes

DVD/CD/SACD TEXT

Yes / Yes / Yes

CD-R/CD-RW Playback

Yes / Yes

DVD-R/+R/+R DL/+RW/-RW/-RW(VR) Playback (Some discs may not be played back)

Yes / Yes / Yes / Yes / Yes / Yes

DivX Playback

Yes

JPEG Playback

Yes

MP3 Playback

Yes

MP3/ID3Tag Ver.1.1/iD3Tag Ver.2.0

Yes / Yes / Yes

Multi Disc Resume (DVD,VCD)

10 Discs

Progressive Scan (NTSC/PAL)

Yes / Yes

Precision Cinema Progressive

Yes

D/A Converter (Video)

108MHz/12bit

SPEAKERS

Front Speaker Type (Grill)

Floorstanding (Punched Metal)

Front Speaker System

2 way 2 unit + Passive Radiator

Front Speaker Woofer Unit

6.5cm

Front Speaker Tweeter Unit

5cm

Front Speaker Length of Supplied Cable

4.5m x 2

Centre Speaker System

1 way (Full Range)

Centre Speaker Unit

6.5cm

Centre Speaker Length of Supplied Cable

3m x 1

Surround Speaker Type (Grill)

Floorstanding (Punched Metal)

Surround Speaker System

1 way (Full Range)

Surround Speaker Unit

6.5cm

Surround Speaker Length of Supplied Cable

5m x 2

Subwoofer System

DDTD

Subwoofer - Active/Passive

Passive

Subwoofer Speaker Unit

16cm

Subwoofer Length of Supplied Cable

3.5m x 1

WEIGHT & DIMENSIONS

Main Unit Size (W x H x D)

Approx. 430 x 66 x 385 mm

Main Unit Weight

Approx. 4.3kg

Front Speaker Size (W x H x D)

Approx. 113 x 830 x 84 mm

Front Speaker Weight

Approx. 1.9kg

Front Speaker (with stands) Size (W x H x D)

Approx. 315 x (1,015 - 1,335) x 315 mm

Front Speaker (with stands) Weight

Approx. 3.8kg

Centre Speaker Size (W x H x D)

Approx. 385 x 50 x 67 mm

Centre Speaker Weight

Approx. 0.4kg

Surround Speaker Size (W x H x D)

Approx. 113 x 830 x 84 mm

Surround Speaker Weight

Approx. 1.7kg

Surround Speaker (with stands) Size (W x H x D)

Approx. 315 x (1,015 - 1,335) x 315 mm

Surround Speaker (with stands) Weight

Approx. 3.6kg

Subwoofer Size (W x H x D)

Approx. 225 x 395 x 325 mm

Subwoofer Weight

Approx. 6.1kg
