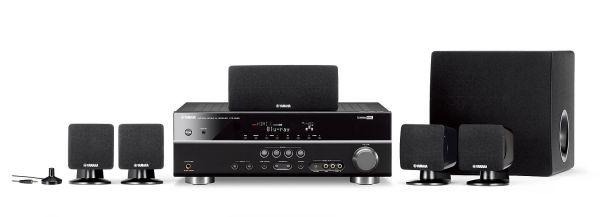

YAMAHA YHT-294D AV RECEIVER AND SPEAKER SYSTEM FOR 110-240 VOLTS
3D-compatible Home Theatre Package featuring 1080p-compatible HDMI repeater (4 in/1 out), YPAO, SCENE and upgraded CINEMA DSP. Affordable yet sophisticated, it gives you the assurance of superb HD audio and video quality.
Product Code: YHT-294D Product ID: 17030
Product sold by: samstores.com
Availability: In Stock New
Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!
High Sound Quality
5.1-channel total 600W powerful sound (100W x 5 + 100W subwoofer)
192 kHz/24-bit Burr-Brown DACs for all channels
Natural tonal sound speakers: Compact design for flexible placement
16cm 100W Advanced YST subwoofer with Linear Damping
High Picture Quality
1080p-compatible HDMI repeater (4 in/1 out)
Supports Deep Color, x.v.Color, 24Hz Refresh Rate and Auto Lip Sync
Surround Realism
Upgraded CINEMA DSP with 17 DSP programs
Compressed Music Enhancer
Adaptive DRC (Dynamic Range Control) and Adaptive DSP level
Advanced Features
HDMI (V.1.4 with 3D)
HD Audio compatibility (linear PCM via HDMI transmission)
SCENE buttons with direct power on quick and simple to use
YPAO sound optimization for automatic speaker setup
Front panel mini jack input for connecting portable audio player
Audio input assign capability for HDMI and component video input
40-station preset tuning
Auto power down function with variable time setting
Includes mini stands for front and surround speakers
Specification
Channel 5.1-channel
Total System Power 600 W
Receiver
Minimum RMS Output Power 100 W x 5 (6 ohms, 1 kHz, 0.9% THD)
Maximum Effective Output Power 135 W x 5 (6 ohms, 1 kHz, 10% THD)
Dynamic Power/Channel
(8/6/4/2 ohms) 105/130/150 W (6/4/2 ohms)
SCENE Yes
Front Panel Mini Jack Input Yes
YPAO Sound Optimi?ation Yes
Compressed Music Enhancer Yes
Adaptive DRC
(Dynamic Range Control) Yes
HDMI Input / Output 4 / 1
Audio Digital Input
(Optical / Coaxial) 4 (2 / 2)
192kHz/24-Bit DACs Yes (All channels)
Surround Programs 17
HDMI Interface V.1.4a with 3D
Tuner FM/AM
Total Harmonic Distortion 0.06% (1 kHz, 50 W/8 ohms)
Signal-to-Noise Ratio (250 mV) 98 dB (250 mV)
Standby Power Consumption 0.5 W
Dimensions (W x H x D) 435 x 151 x 315 mm
Weight 7.5 kg
Speaker System
System Frequency Response 30 Hz-40 kHz
Impedance 6 ohms (without subwoofer)
Front Speaker
Type Acoustic suspension
Drivers 6.5cm cone full-range driver
Input Power (Nominal / Max) 30 W / 80 W
Sensitivity 81 dB/2.83 V/1 m
Dimensions (W x H x D) 90 x 120 x 123 mm (with stand); 90 x 90 x 109 mm (without stand)
Weight 0.51 kg/unit (with stand)
Center Speaker
Type 2-way acoustic suspension
Drivers Dual 6.5cm cone woofers and 2.5cm balanced-dome tweeter
Input Power (Nominal / Max) 50 W / 100 W
Sensitivity 84 dB/2.83 V/1 m
Dimensions (W x H x D) 220 x 90 x 109 mm
Weight 1 kg
Surround Speaker
Type Acoustic suspension
Drivers 6.5cm cone full-range driver
Input Power (Nominal / Max) 30 W / 80 W
Sensitivity 81 dB/2.83 V/1 m
Dimensions (W x H x D) 90 x 120 x 123 mm (with stand); 90 x 90 x 109 mm (without stand)
Weight 0.51 kg/unit (with stand)
Subwoofer
Type Advanced YST with Linear Port
Output Power 100 W
Driver 16cm cone
Dimensions (W x H x D) 262 x 264 x 316 mm
Weight 6.9 kg
