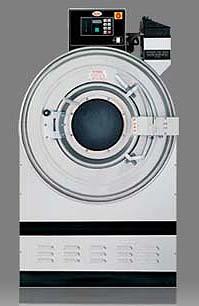

UNIMAC UW60AV

Unimac UW60AV
60 G - Force Extraction, Heavy Duty Bearings, Extra Strong Gamma A-Frame Design, 30 Cycle Programmable Control, Technical Specification.

Product Specification:

Unit Dimension:     64.5"H x 36.5"W x 45"D

Unit Weight:          1,079 Lb.

Technical Specification UW60AV

Dimensions

Capacity - kg (lb) 27.3 (60)

Width - mm (in) 930 (36 5/8")

Depth -mm (in) 1143 (45")

Height - mm (in) 1638 (64 1/2")

Cylinder Diameter - mm (in) 813 (32")

Cylinder Depth - mm (in) 508 (20")

Cylinder Volume - liters (cu. ft.) 264 (9.31)

Door Opening Size - mm (in) 445 (17 1/2")

Door Bottom To Floor - mm (in) 718 (28 1/4")

Speeds

Gentle Speed - RPM

Wash Speed - RPM 40

Distribution Speed - RPM 71

G-Force

Medium Speed - RPM

High 1 Extract - RPM 40 (297)

High 2 Extract - RPM 106 (483)

High 3 Extract - RPM 160 (594)

Connections

Water Inlet - mm (in) 19 (3/4")

Steam Inlet -mm (in) 13 (1/2")

Drain Diameter - mm (in) 76 (3")

Motor

Motor Size - kW(HP) 2.2 (3.0)

Agency Approvals

Agency Approvals ETL, ETLc

UW PV VARIABLE SPEED ELECTRICAL OPTIONS

VOLTAGE OPTIONS UW60-AV

X 200-240/60/1-3

Sugg. List STD

Q 200-240/50-60/3

Sugg. List N/A

N 440-480/50-60/3 *

Sugg. List

Model, Electric Specifications (Voltage, Hertz, Phase).

All Prices are Ex-Works - Ripon, WI - In U.S. dollars.

Prices & Specifications subject to change without notice.

 This appliance is not designed for use in America. Only for countries that use 220 / 240 V electrical outlets
