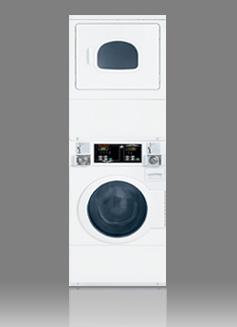

Stacked Washer/Dryer STEX77 Features include:
- Designed as vertical combination with the same capacity of the frontload washer and dryer
- The stacked unit takes up half the floor space of a conventional washer and dryer
- The stacked unit has the same hook-ups and connections as a standard washer and dryer
- Having a window in the washer and dryer enables customers to view the entire laundering process
- See washer and dryer descriptions for additional product features
Electronic Touch PadLED displays price and time remaining in cycle. Customers will appreciate knowing the status of their laundry and it's easy for the store owner to program the vend price.
Control FeaturesControl TypeElectronic Touch PadDigital DisplayTime remaining and vend priceWasher Temp/Fabric Selector4Dryer Temp Selector4View Cycle StatusYesWasher - HeaterNoDrainPumpHeat SourceElectric
World Electronic Drop (Prepped for later installation)Using electronic signature recognition technology, the world coin drop kit offers superior coin validation and comes pre-programmed to accept coins from numerous markets around the world as well as tokens. The teach mode allows coin store owners to easily reprogram the electronic drop to recognize additional currencies.Dual Drop (Prepped for later installation)2 coin drops for coinage of various denominations.Central Payment Systems (Prepped for later installation)In this system, all machines in a vended laundry are linked to a main control unit. Customers select their machine and purchase their cycles at a central terminal. This eliminates the need for each washer and dryer to have an individual coin drop or card reader. It also offers a level of security for owners, as all currency is collected in a central vault.
Unit SpecsWidth - mm (in)683 (26 7/8")Depth - mm (in)711 (28")Height - mm (in)1946 (76 5/8")Net Weight - kg (lb)163 (360)Shipping Weight - kg (lb)177 (390)ColorWhiteAgency ApprovalsUL, CSAWasher Specs - FeaturesBasket Volume - liters (cu. ft.)80 (2.84)Basket TypeStainless SteelActivationCoinDispenserDetergent, Bleach, SoftenerWasher Specs - ElectricalMotor HPVariable Speed Induction, 3/4 HPElectrical Requirements120/60/1 - 15 amp
220/60/1 - 10 amp
230/50/1 - 10 amp
Washer Specs - Operating SpeedsWash/Tumble - RPM41, 50Distribution/Pump - RPM80Spin Speeds - RPM500, 650, 1000Dryer Specs - FeaturesCylinder InteriorGalvanized SteelDoor Opening180 deg. Side SwingLint FilterSecuredBasket Volume - liters (cu. ft.)201 (7.0)Dryer Specs - ElectricalElectric120/240/60/1 - 30 amp
220/60/1 - 25 amp
230/50/1 - 30 amp
Dryer Specs - Energy InputElectric5350W - 120/240/60/1
5000W - 220/60/1
4800W - 230/50/1
This appliance is not designed for use in America
only for countries that use 240V electrical outlets.
