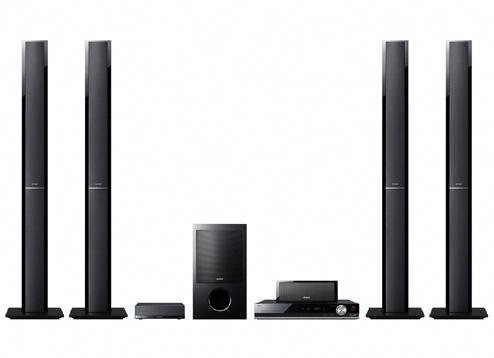

SONY DAV-DZ940K REGION FREE HOME THEATRE SYSTEM FOR 110-220 VOLTS

5.1ch DVD Home Theatre System

• 5.1 channel system in Monolithic Design with DVD
• Speaker system 2-way
• HDMI (1080p upscaling for DVDs)
• Video playback via USB (Home Xvid and MPEG-4 Simple Profile
• Reproductive function and recording music via USB
• BRAVIA Sync

Total Power Output 1000W (167W x 5 + 165W)

Digital Cinema Auto Calibration

Audio Return Channel (HDMI)

HDMI Output (Upscale 1080p for DVD)

USB Movie Playback (DivX and MPEG4 Simple Profile)

Power Output - Front (RMS) 167W

Power Output - Center (RMS) 167W

Power Output - Surround (RMS) 167W

Power Output - Subwoofer (RMS) 165W

Power Consumption (in Operation) 160W

Power Consumption (in Standby) 0.3W

Power Output - Total (RMS) 1000W

S-Master Yes (48-Bit)

USB

Speaker Terminal (Front/Centre/Surround/Subwoofer)

Movie/Music Mode Yes /

Portable Audio Enhancer

Dolby Digital

DTS

BRAVIA Sync

Control for HDMI

DEMO Mode

Dimmer

A/V SYNC (Lip Sync)

Audio Line IN (Optical)

Video Signal OUT (Component)

Mic Input Jack (3.5mm)

Audio Return Channel (HDMI)

Bass Boost Function (Dynamic Bass on RM)

Night Mode (Normal/Plus)

Dolby Pro Logic

Video Signal OUT (HDMI) Upscale 720p/1080i for DVD

TUNER Band FM

Front Speaker Type (Grill) Tallboy (Fixed / Punched Metal)

Front Speaker System 2 way (Full Range)

Front Speaker Woofer Unit 65mm

Centre Speaker System 1 way (Full Range)

Centre Speaker Unit 1

Centre Speaker Woofer Unit 65mm

Surround Speaker Type (Grill) Tallboy (Fixed / Punched Metal)

Surround Speaker System 2 way (Full Range)

Surround Speaker Woofer Unit 65mm

Subwoofer - Active/Passive Passive

Subwoofer Speaker Unit 180mm

Front Speaker Tweeter Unit 40mm

Surround Speaker Unit 2

Surround Speaker Tweeter Unit 40mm

Main Unit Size (W x H x D) Approx. 430 x 55 x 350 mm

Main Unit Weight Approx. 3.5kg

Front Speaker Size (W x H x D) Approx. 260 x 1185 x 260 mm

Front Speaker Weight Approx. 2.7kg

Centre Speaker Size (W x H x D) Approx. 261 x 82 x 79 mm

Centre Speaker Weight Approx. 0.6kg

Surround Speaker Size (W x H x D) Approx. 260 x 1185 x 260 mm

Surround Speaker Weight Approx. 2.7kg

Subwoofer Size (W x H x D) Approx. 230 x 400 x 305 mm

Subwoofer Weight Approx. 6.4kg

Mic IN/VOLUME/ECHO

Karaoke-PON (Only DVD Function)

Multiplex (Only DVD Function)

Key Control (Only DVD Function)
