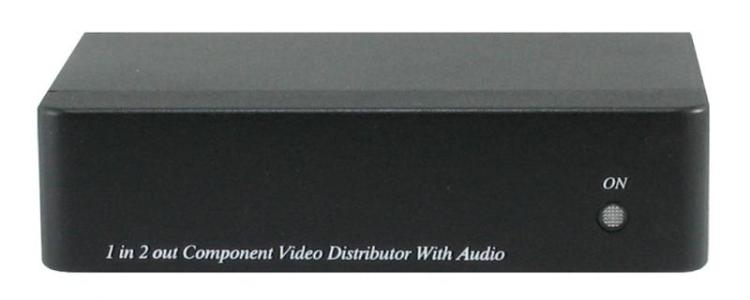

The ANI-1X2COMPAA is a 1 input to 2 output Component Video Distribution Amplifier with Stereo Left and Right Audio.They are used to distribute video and Audio signals to multiple destinations, These products provide multiple outputs that are identical to the source signal. There are useful for distributing signals from VCRs, Camcorders, Video Game Consoles, DVDs, Satellite Receivers, CAT V Set Top Boxes, etc. The ANI-1X2COMPAA can also be cascaded.
Product Code: SH-ANI-1X2COMPAA Product ID: 21171
Product sold by: samstores.com
Availability: In Stock New
The ANI-1X2COMPAA is a 1 input to 2 output Component Video Distribution Amplifier with Stereo Left and Right Audio.They are used to distribute video and Audio signals to multiple destinations, These products provide multiple outputs that are identical to the source signal. There are useful for distributing signals from VCRs, Camcorders, Video Game Consoles, DVDs, Satellite Receivers, CAT V Set Top Boxes, etc. The ANI-1X2COMPAA can also be cascaded.
FEATURES
Input:
1x Component Video with Stereo Audio
Output:
2x Component Video with Stereo Audio
High resolution Support HDTV 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Lighted Power Indicator
Video Bandwidth >400 Mhz
Accepts NTSC and PAL
Regulatory Approvals CE, FCC, RoHS(2002/95/EC)
SPECIFICATIONS
Type of Amplifier: 1:2 Component Video Distribution Amplifier with Stereo Audio
Input:
Video x 1: Component (RCA) (YPbPr/YCbCr/RGB) Video 75 0hms
Audio x 1: Stereo Left and Right Audio (RCA)
Output:
Video x 2: Component Video (RCA) (YPbPr/YCbCr/RGB)
Audio x 2: Stereo Left and Right Audio (RCA)
Video Bandwidth: 400MHz
Enclosure Type: Metal case
Power Consumed: 420mA Maximum
Power Source: DC 12 Volts, @500mA
Size(L,W,H): 12 in x 6.4 in x1.55 in
WHAT'S INCLUDED
ANI-1X2COMPAA Distribution Amplifier
Users Guide
AC/DC Adapter: 12VDC, 500mA
